Advanced Features

The advanced features documentation provides an overview of WEC-Sim features and applications that were not covered in the WEC-Sim Tutorials. The diagram below highlights some of WEC-Sim’s advanced features, details of which will be described in the following sections. Most advanced features have a corresponding example case within the WEC-Sim_Applications repository or the WEC-Sim/Examples directory in the WEC-Sim source code. For those topics of interest, it is recommended that users run and understand the output of an application while reading the documentation on the feature.

BEMIO

The Boundary Element Method Input/Output (BEMIO) functions are used to pre-process the BEM hydrodynamic data prior to running WEC-Sim. For more information about the WEC-Sim workflow, refer to Running WEC-Sim. The following section can also be followed in conjunction with the cases in the WEC-Sim/Examples directory in the WEC-Sim source code. This includes several cases with WAMIT, NEMOH, Aqwa, and Capytaine. For more information, refer to Series 1 - Multiple Condition Runs (MCR). BEMIO functions perform the following tasks:

Read BEM results from WAMIT, NEMOH, Aqwa, or Capytaine.
Calculate the radiation and excitation impulse response functions (IRFs).
Calculate the state space realization for the radiation IRF.
Save the resulting data in Hierarchical Data Format 5 (HDF5).
Plot typical hydrodynamic data for user verification.

Note

Previously the python based BEMIO code was used for this purpose. The python BEMIO functions have been converted to MATLAB and are included in the WEC-Sim source code. The python based BEMIO code will remain available but will no longer be supported.

BEMIO Functions

functions.BEMIO.readWAMIT(hydro, filename, exCoeff)

Reads data from a WAMIT output file.

If generalized body modes are used, the output directory must also include the *.cfg, *.mmx, and *.hst files. If simu.nonlinearHydro = 3 will be used, the output directory must also include the *.3fk and *.3sc files.

See WEC-Sim/examples/BEMIO/WAMIT for examples of usage.

Parameters:

hydro (struct) – Structure of hydro data that WAMIT input data will be appended to
filename (string) – Path to the WAMIT output file
exCoeff (integer) – Flag indicating the type of excitation force coefficients to read, ‘diffraction’ (default), ‘haskind’, or ‘rao’

Returns:

hydro – Structure of hydro data with WAMIT data appended

Return type:

struct

functions.BEMIO.readNEMOH(hydro, filedir)

Reads data from a NEMOH working folder.

See WEC-Sim\examples\BEMIO\NEMOH for examples of usage.

Parameters:

hydro (struct) – Structure of hydro data that NEMOH input data will be appended to
filename (string) –
Path to the NEMOH working folder, must include:
- Nemoh.cal
- Mesh/Hydrostatics.dat (or Hydrostatiscs_0.dat, Hydrostatics_1.dat, etc. for multiple bodies)
- Mesh/KH.dat (or ``KH_0.dat, KH_1.dat, etc. for multiple bodies)
- Results/RadiationCoefficients.tec
- Results/ExcitationForce.tec
- Results/DiffractionForce.tec - If simu.nonlinearHydro = 3 will be used
- Results/FKForce.tec - If simu.nonlinearHydro = 3 will be used

Returns:

hydro – Structure of hydro data with NEMOH data appended

Return type:

struct

Note

Instructions on how to download and use the open source BEM code NEMOH are provided on the NEMOH website.
The NEMOH Mesh.exe code creates the Hydrostatics.dat and KH.dat files (among other files) for one input body at a time. For the readNEMOH function to work correctly in the case of a multiple body system, the user must manually rename Hydrostatics.dat and KH.dat files to Hydrostatics_0.dat, Hydrostatics_1.dat, …, and KH_0.dat, KH_1.dat,…, corresponding to the body order specified in the Nemoh.cal file.

functions.BEMIO.readAQWA(hydro, ah1Filename, lisFilename)

Reads data from AQWA output files.

See WEC-Sim\examples\BEMIO\AQWA for examples of usage.

Parameters:

hydro (struct) – Structure of hydro data that Aqwa input data will be appended to
ah1Filename (string) – .AH1 AQWA output file
lisFilename (string) – .LIS AQWA output file

Returns:

hydro – Structure of hydro data with Aqwa data appended

Return type:

struct

functions.BEMIO.readCAPYTAINE(hydro, filename, hydrostatics_sub_dir)

Reads data from a Capytaine netcdf file

See WEC-Sim\examples\BEMIO\CAPYTAINE for examples of usage.

Parameters:

hydro (struct) – Structure of hydro data that Capytaine input data will be appended to
filename (string) – Capytaine .nc output file
hydrostatics_sub_dir (string) – Path to directory where Hydrostatics.dat and KH.dat files are saved

Returns:

hydro – Structure of hydro data with Capytaine data appended

Return type:

struct

functions.BEMIO.normalizeBEM(hydro)

Normalizes BEM hydrodynamic coefficients in the same manner that WAMIT outputs are normalized. Specifically, the linear restoring stiffness is normalized as $C_{i,j}/(\rho g)$; added mass is normalized as $A_{i,j}/\rho$; radiation damping is normalized as $B_{i,j}/(\rho \omega)$; and, exciting forces are normalized as $X_i/(\rho g)$. And, if necessary, sort data according to ascending frequency.

This function is not called directly by the user; it is automatically implemented within the readWAMIT, readCAPYTAINE, readNEMOH, and readAQWA functions.

Parameters:: hydro ([1 x 1] struct) – Structure of hydro data that will be normalized and sorted depending on the value of hydro.code
Returns:: hydro – Normalized hydro data
Return type:: [1 x 1] struct

functions.BEMIO.combineBEM(hydro)

Combines multiple BEM outputs into one hydrodynamic ‘system.’ This function requires that all BEM outputs have the same water depth, wave frequencies, and wave headings. This function would be implemented following multiple readWAMIT, readNEMOH, readCAPYTAINE, or readAQWA and before radiationIRF, radiationIRFSS, excitationIRF, writeBEMIOH5, or plotBEMIO function calls.

See WEC-Sim\examples\BEMIO\NEMOH for examples of usage.

Parameters:: hydro ([1 x n] struct) – Structures of hydro data that will be combined into a single structure
Returns:: hydro – Combined structure.
Return type:: [1 x 1] struct

functions.BEMIO.radiationIRF(hydro, tEnd, nDt, nDw, wMin, wMax)

Calculates the normalized radiation impulse response function. This is equivalent to the radiation IRF in the theory section normalized by $\rho$:

$\overline{K}_{r,i,j}(t) = {\frac{2}{\pi}}\intop_0^{\infty}{\frac{B_{i,j}(\omega)}{\rho}}\cos({\omega}t)d\omega$

Default parameters can be used by inputting []. See WEC-Sim\examples\BEMIO for examples of usage.

Parameters:

hydro (struct) – Structure of hydro data
tEnd (float) – Calculation range for the IRF, where the IRF is calculated from t = 0 to tEnd, and the default is 100 s
nDt (float) – Number of time steps in the IRF, the default is 1001
nDw (float) – Number of frequency steps used in the IRF calculation (hydrodynamic coefficients are interpolated to correspond), the default is 1001
wMin (float) – Minimum frequency to use in the IRF calculation, the default is the minimum frequency from the BEM data
wMax (float) – Maximum frequency to use in the IRF calculation, the default is the maximum frequency from the BEM data

Returns:

hydro – Structure of hydro data with radiation IRF

Return type:

struct

functions.BEMIO.radiationIRFSS(hydro, Omax, R2t)

Calculates the state space (SS) realization of the normalized radiation IRF. If this function is used, it must be implemented after the radiationIRF function.

Default parameters can be used by inputting []. See WEC-Sim\examples\BEMIO for examples of usage.

Parameters:

hydro (struct) – Structure of hydro data
Omax (integer) – Maximum order of the SS realization, the default is 10
R2t (float) – $R^2$ threshold (coefficient of determination) for the SS realization, where $R^2$ may range from 0 to 1, and the default is 0.95

Returns:

hydro – Structure of hydro data with radiation IRF state space coefficients

Return type:

struct

functions.BEMIO.excitationIRF(hydro, tEnd, nDt, nDw, wMin, wMax)

Calculates the normalized excitation impulse response function:

$\overline{K}_{e,i,\theta}(t) = {\frac{1}{2\pi}}\intop_{-\infty}^{\infty}{\frac{X_i(\omega,\theta)e^{i{\omega}t}}{{\rho}g}}d\omega$

Default parameters can be used by inputting []. See WEC-Sim\examples\BEMIO for examples of usage.

Parameters:

hydro (struct) – Structure of hydro data
tEnd (float) – Calculation range for the IRF, where the IRF is calculated from t = 0 to tEnd, and the default is 100 s
nDt (float) – Number of time steps in the IRF, the default is 1001
nDw (float) – Number of frequency steps used in the IRF calculation (hydrodynamic coefficients are interpolated to correspond), the default is 1001
wMin (float) – Minimum frequency to use in the IRF calculation, the default is the minimum frequency from the BEM data
wMax (float) – Maximum frequency to use in the IRF calculation, the default is the maximum frequency from the BEM data

Returns:

hydro – Structure of hydro data with excitation IRF

Return type:

struct

functions.BEMIO.readBEMIOH5(filename, number, meanDrift)

Function to read BEMIO data from an h5 file into a hydrodata structure for the bodyClass

Parameters:

filename (string) – Path to the BEMIO .h5 file to read
number (integer) – Body number to read from the .h5 file. For example, body(2) in the input file must read body2 from the .h5 file.
meanDrift (integer) – Flag to optionally read mean drift force coefficients

Returns:

hydroData – Struct of hydroData used by the bodyClass. Different format than the BEMIO hydro struct

Return type:

struct

functions.BEMIO.reverseDimensionOrder(inputData)

This function reverse the order of the dimensions in data. Called by readBEMIOH5() to permute data into the correct format.

This required permutation is a legacy of the Load_H5 function that reordered dimensions of hydroData after reading

Parameters:: inputData (array) – Any numeric data array
Returns:: outputData – Input data array with the order of its dimensions reversed
Return type:: array

functions.BEMIO.calcSpectralMoment(angFreq, S_f, order)

Parameters:

angFreq ([1 n] float vector) – Vector of wave angular frequencies
S_f ([1 n] float vector) – Vector of wave spectra
order (float) – Order of the spectral moment

Returns:

mn – Spectral moment of the nth order

Return type:

float vector

functions.BEMIO.calcWaveNumber(omega, waterDepth, g, deepWater)

Solves the wave dispersion relation $\omega^2 = g k*tanh(k h)$ for the wave number

Parameters:

omega (float) – Wave frequency [rad/s]
waterDepth (float) – Water depth [m]
g (float) – Gravitational acceleration [m/s^2]
deepWater (integar) – waveClass flag inidicating a deep water wave [-]

Returns:

k – Wave number [m]

Return type:

float

functions.BEMIO.writeBEMIOH5(hydro)

Writes the hydro data structure to a .h5 file.

See WEC-Sim\tutorials\BEMIO for examples of usage.

Parameters:: hydro ([1 x 1] struct) – Structure of hydro data that is written to hydro.file

Note

Technically, this step should not be necessary - the MATLAB data structure hydro is written to a *.h5 file by BEMIO and then read back into a new MATLAB data structure hydroData for each body by WEC-Sim. The reasons this step was retained were, first, to remain compatible with the python based BEMIO output and, second, for the simpler data visualization and verification capabilities offered by the *.h5 file viewer.

functions.BEMIO.plotBEMIO(varargin)

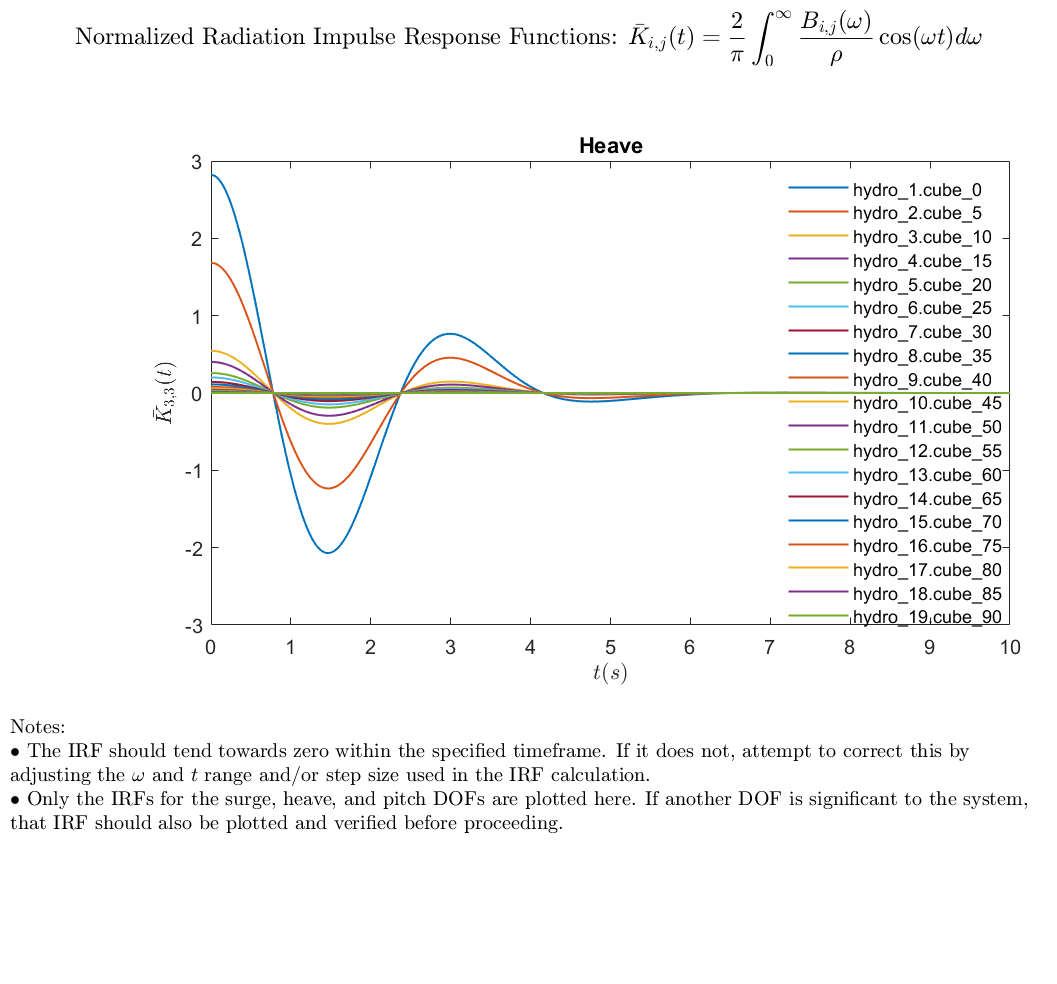

Plots the added mass, radiation damping, radiation IRF, excitation force magnitude, excitation force phase, and excitation IRF for each body in the given degrees of freedom.

Usage: plotBEMIO(hydro, hydro2, hydro3, ...)

See WEC-Sim\examples\BEMIO for additional examples.

Parameters:: varargin (struct(s)) – The hydroData structure(s) created by the other BEMIO functions. One or more may be input.

functions.BEMIO.plotAddedMass(varargin)

Plots the added mass for each hydro structure’s bodies in the given degrees of freedom.

Usage: plotAddedMass(hydro, hydro2, hydro3, ...)

Parameters:: varargin (struct(s)) – The hydroData structure(s) created by the other BEMIO functions. One or more may be input.

functions.BEMIO.plotRadiationDamping(varargin)

Plots the radiation damping for each hydro structure’s bodies in the given degrees of freedom.

Usage: plotRadiationDamping(hydro, hydro2, hydro3, ...)

Parameters:: varargin (struct(s)) – The hydroData structure(s) created by the other BEMIO functions. One or more may be input.

functions.BEMIO.plotRadiationIRF(varargin)

Plots the radiation IRF for each hydro structure’s bodies in the given degrees of freedom.

Usage: plotRadiationIRF(hydro, hydro2, hydro3, ...)

Parameters:: varargin (struct(s)) – The hydroData structure(s) created by the other BEMIO functions. One or more may be input.

functions.BEMIO.plotExcitationMagnitude(varargin)

Plots the excitation force magnitude for each hydro structure’s bodies in the given degrees of freedom.

Usage: plotExcitationMagnitude(hydro, hydro2, hydro3, ...)

Parameters:: varargin (struct(s)) – The hydroData structure(s) created by the other BEMIO functions. One or more may be input.

functions.BEMIO.plotExcitationPhase(varargin)

Plots the excitation force phase for each hydro structure’s bodies in the given degrees of freedom.

Usage: plotExcitationPhase(hydro, hydro2, hydro3, ...)

Parameters:: varargin (struct(s)) – The hydroData structure(s) created by the other BEMIO functions. One or more may be input.

functions.BEMIO.plotExcitationIRF(varargin)

Plots the excitation IRF for each hydro structure’s bodies in the given degrees of freedom.

Usage: plotExcitationIRF(hydro, hydro2, hydro3, ...)

Parameters:: varargin (struct(s)) – The hydroData structure(s) created by the other BEMIO functions. One or more may be input.

BEMIO hydro Data Structure

Variable	Format	Description
A	[nDOF,nDOF,Nf]	radiation added mass
Ainf	[nDOF,nDOF]	infinite frequency added mass
B	[nDOF,nDOF,Nf]	radiation wave damping
theta	[1,Nh]	wave headings (deg)
body	{1,Nb}	body names
cb	[3,Nb]	center of buoyancy
cg	[3,Nb]	center of gravity
code	string	BEM code (WAMIT, NEMOH, AQWA, or CAPYTAINE)
K_hs	[6,6,Nb]	hydrostatic restoring stiffness
dof	[1, Nb]	Degrees of freedom (DOF) for each body. Default DOF for each body is 6 plus number of possible generalized body modes (GBM).
ex_im	[nDOF,Nh,Nf]	imaginary component of excitation force or torque
ex_K	[nDOF,Nh,length(ex_t)]	excitation IRF
ex_ma	[nDOF,Nh,Nf]	magnitude of excitation force or torque
ex_ph	[nDOF,Nh,Nf]	phase of excitation force or torque
ex_re	[nDOF,Nh,Nf]	real component of excitation force or torque
ex_t	[1,length(ex_t)]	time steps in the excitation IRF
ex_w	[1,length(ex_w)]	frequency step in the excitation IRF
file	string	BEM output filename
fk_im	[nDOF,Nh,Nf]	imaginary component of Froude-Krylov contribution to the excitation force or torque
fk_ma	[nDOF,Nh,Nf]	magnitude of Froude-Krylov excitation component
fk_ph	[nDOF,Nh,Nf]	phase of Froude-Krylov excitation component
fk_re	[nDOF,Nh,Nf]	real component of Froude-Krylov contribution to the excitation force or torque
g	[1,1]	gravity
h	[1,1]	water depth
Nb	[1,1]	number of bodies
Nf	[1,1]	number of wave frequencies
Nh	[1,1]	number of wave headings
plotDofs	[length(plotDofs),2]	degrees of freedom to be plotted (default: [1,1;3,3;5,5])
plotBodies	[1,length(plotBodies)]	BEM bodies to be plotted (default: [1:Nb])
plotDirections	[1,length(plotDirections)]	indices indicating wave directions to plot from list of headings (default: [1])
ra_K	[nDOF,nDOF,length(ra_t)]	radiation IRF
ra_t	[1,length(ra_t)]	time steps in the radiation IRF
ra_w	[1,length(ra_w)]	frequency steps in the radiation IRF
rho	[1,1]	density
sc_im	[nDOF,Nh,Nf]	imaginary component of scattering contribution to the excitation force or torque
sc_ma	[nDOF,Nh,Nf]	magnitude of scattering excitation component
sc_ph	[nDOF,Nh,Nf]	phase of scattering excitation component
sc_re	[nDOF,Nh,Nf]	real component of scattering contribution to the excitation force or torque
ss_A	[nDOF,nDOF,ss_O,ss_O]	state space A matrix
ss_B	[nDOF,nDOF,ss_O,1]	state space B matrix
ss_C	[nDOF,nDOF,1,ss_O]	state space C matrix
ss_conv	[nDOF,nDOF]	state space convergence flag
ss_D	[nDOF,nDOF,1]	state space D matrix
ss_K	[nDOF,nDOF,length(ra_t)]	state space radiation IRF
ss_O	[nDOF,nDOF]	state space order
ss_R2	[nDOF,nDOF]	state space R2 fit
T	[1,Nf]	wave periods
Vo	[1,Nb]	displaced volume
w	[1,Nf]	wave frequencies

Writing Your Own h5 File

The most common way of creating a *.h5 file is using BEMIO to post-process the outputs of a BEM code. This requires a single BEM solution that contains all hydrodynamic bodies and accounts for body-to-body interactions. Some cases in which you might want to create your own h5 file are:

Use experimentally determined coefficients or a mix of BEM and experimental coefficients.
Combine results from different BEM files and have the coefficient matrices be the correct size for the new total number of bodies.
Modify the BEM results for any other reason.

MATLAB and Python have functions to read and write *.h5 files easily. WEC-Sim includes one function writeBEMIOH5 to help you create your own *.h5 file. The first step is to have all the required coefficients and properties in Matlab in the correct hydroData format. Then writeBEMIOH5 is used to create and populate the *.h5 file.

Simulation Features

This section provides an overview of WEC-Sim’s simulation class features; for more information about the simulation class code structure, refer to Simulation Class.

Running WEC-Sim

The subsection describes the various ways to run WEC-Sim. The standard method is to type the command wecSim in the MATLAB command window when in a $CASE directory. This is the same method described in the Workflow and Tutorials sections.

Running as Function

WEC-Sim allows users to execute WEC-Sim as a function by using wecSimFcn. This option may be useful for users who wish to devise their own batch runs, isolate the WEC-Sim workspace, create a special set-up before running WEC-Sim, or link to another software.

Running from Simulink

WEC-Sim can also be run directly from Simulink. The Run From Simulink advanced feature allows users to initialize WEC-Sim from the command window and then begin the simulation from Simulink. This allows greater compatibility with other models or hardware-in-the-loop simulations that must start in Simulink. The WEC-Sim library contains mask options that allow users to either:

Define an standard input file to use in WEC-Sim or

Define custom parameters inside the block masks.

The Global Reference Frame mask controls whether an input file or custom parameters are used for WEC-Sim. Note that when the Custom Parameters options is selected, WEC-Sim will only use those variable in the block masks. Certain options become visible when the correct flag is set. For example, body.morisonElement.cd will not be visible unless body.morisonElement.on > 0. This method of running WEC-Sim may help some users visualize the interplay between the blocks and classes. For more information on how the blocks and classes are related, see the Code Structure section.

To run WEC-Sim from Simulink, open the Simulink .slx file and choose whether to use an input file or custom parameters in the Global Reference Frame. Next type initializeWecSim in the MATLAB Command Window. Then, run the model from the Simulink interface. Lastly, after the simulation has completed, type stopWecSim in the MATLAB Command Window to run post-processing.

Run from Simulink with a wecSimInputFile.m
- Open the WEC-Sim Simulink file (.slx).
- Set the Global Reference Frame to use an input file
- Type initializeWecSim in the Command Window
- Run the model from Simulink
- Wait for the simulation to complete, then type stopWecSim in the Command Window
Run from Simulink with custom parameters
- Open the Simulink file (.slx).
- Set the Global Reference Frame to use custom parameters
- (Optional) prefill parameters by loading an input file.
- Edit custom parameters as desired
- Type initializeWecSim in the Command Window
- Run the model from Simulink
- Wait for the simulation to complete, then type stopWecSim in the Command Window

After running WEC-Sim from Simulink with custom parameters, a wecSimInputFile_simulinkCustomParameters.m file is written to the $CASE directory. This file specifies all non-default WEC-Sim parameters used for the WEC-Sim simulation. This file serves as a record of how the case was run for future reference. It may be used in the same manner as other input files when renamed to wecSimInputFile.m

Multiple Condition Runs (MCR)

WEC-Sim allows users to easily perform batch runs by typing wecSimMCR into the MATLAB Command Window. This command executes the Multiple Condition Run (MCR) option, which can be initiated three different ways:

Option 1. Specify a range of sea states and PTO damping coefficients in the WEC-Sim input file, example: waves.height = 1:0.5:5; waves.period = 5:1:15; pto(1).stiffness=1000:1000:10000; pto(1).damping=1200000:1200000:3600000;

Option 2. Specify the excel filename that contains a set of wave statistic data in the WEC-Sim input file. This option is generally useful for power matrix generation, example: simu.mcrExcelFile = "<Excel file name>.xls"

Option 3. Provide a MCR case .mat file, and specify the filename in the WEC-Sim input file, example: simu.mcrMatFile = "<File name>.mat"

For Multiple Condition Runs, the *.h5 hydrodynamic data is only loaded once. To reload the *.h5 data between runs, set simu.reloadH5Data =1 in the WEC-Sim input file.

If the Simulink model relies upon From Workspace input blocks other than those utilized by the WEC-Sim library blocks (e.g. waves.elevationFile), these can be iterated through using Option 3. The MCR file header MUST be a cell containing the exact string 'LoadFile'. The pathways of the files to be loaded to the workspace must be given in the cases field of the MCR .mat file. WEC-Sim MCR will then run WEC-Sim in sequence, once for each file to be loaded. The variable name of each loaded file should be consistent, and specified by the From Workspace block.

For more information, refer to Series 1 - Multiple Condition Runs (MCR), and the RM3_MCR example on the WEC-Sim Applications repository.

The RM3_MCR examples on the WEC-Sim Applications repository demonstrate the use of WEC-Sim MCR for each option above (arrays, .xls, .mat). The fourth case demonstrates how to vary the wave spectrum input file in each case run by WEC-Sim MCR.

The directory of an MCR case can contain a userDefinedFunctionsMCR.m file that will function as the standard userDefinedFunctions.m file. Within the MCR application, the userDefinedFunctionsMCR.m script creates a power matrix from the PTO damping coefficient after all cases have been run.

For more information, refer to Series 1 - Multiple Condition Runs (MCR).

Parallel Computing Toolbox (PCT)

WEC-Sim allows users to execute batch runs by typing wecSimPCT into the MATLAB Command Window. This command executes the MATLAB Parallel Computing Toolbox (PCT), which allows parallel capability for Multiple Condition Runs (MCR) but adds an additional MATLAB dependency to use this feature. Similar to MCR, this feature can be executed in three ways (Options 1~3).

For PCT runs, the *.h5 hydrodynamic data must be reload, regardless the setting for simu.reloadH5Data in the WEC-Sim input file.

Note

The userDefinedFunctionsMCR.m is not compatible with wecSimPCT. Please use userDefinedFunctions.m instead.

Radiation Force calculation

The radiation forces are calculated at each time-step by the convolution of the body velocity and the radiation Impulse Response Function – which is calculated using the cosine transform of the radiation-damping. Speed-gains to the simulation can be made by using alternatives to the convolution operation, namely,

The State-Space Representation,
The Finite Impulse Response (FIR) Filters.

Simulation run-times were benchmarked using the RM3 example simulated for 1000 s. Here is a summary of normalized run-times when the radiation forces are calculated using different routes. The run-times are normalized by the run-time for a simulation where the radiation forces are calculated using “Constant Coefficients” ( $T_0$ ):

Radiation Force Calculation Approach

Normalized Run Time

Constant Coefficients

$T_0$

Convolution

$1.57 \times T_0$

State-Space

$1.14 \times T_0$

FIR Filter

$1.35 \times T_0$

State-Space Representation

The convolution integral term in the equation of motion can be linearized using the state-space representation as described in the Theory Manual section. To use a state-space representation, the simu.stateSpace simulationClass variable must be defined in the WEC-Sim input file, for example:

simu.stateSpace = 1

Finite Impulse Response (FIR) Filters

By default, WEC-Sim uses numerical integration to calculate the convolution integral, while FIR filters implement the same using a discretized convolution, by using FIR filters – digital filters that are inherently stable. Convolution of Impulse Response Functions of Finite length, i.e., those that dissipate and converge to zero can be accomplished using FIR filters. The convolution integral can also be calculated using FIR filters by setting:

simu.FIR=1.

Note

By default simu.FIR=0, unless specified otherwise.

Time-Step Features

The default WEC-Sim solver is ‘ode4’. Refer to the NonlinearHydro example on the WEC-Sim Applications repository for a comparisons between ‘ode4’ to ‘ode45’. The following variables may be changed in the simulationClass (where N is number of increment steps, default: N=1):

Fixed time-step: simu.dt
Output time-step: simu.dtOut=N*simu.dt
Nonlinear Buoyancy and Froude-Krylov Excitation time-step: simu.nonlinearDt=N*simu.dt
Convolution integral time-step: simu.cicDt=N*simu.dt
Morison force time-step: simu.morisonDt = N*simu.dt

Fixed Time-Step (ode4)

When running WEC-Sim with a fixed time-step, 100-200 time-steps per wave period is recommended to provide accurate hydrodynamic force calculations (ex: simu.dt = T/100, where T is wave period). However, a smaller time-step may be required (such as when coupling WEC-Sim with MoorDyn or PTO-Sim). To reduce the required WEC-Sim simulation time, a different time-step may be specified for nonlinear buoyancy and Froude-Krylov excitation and for convolution integral calculations. For all simulations, the time-step should be chosen based on numerical stability and a convergence study should be performed.

Variable Time-Step (ode45)

To run WEC-Sim with a variable time-step, the following variables must be defined in the simulationClass:

Numerical solver: simu.solver='ode45'
Max time-step: simu.dt

This option sets the maximum time step of the simulation (simu.dt) and automatically adjusts the instantaneous time step to that required by MATLAB’s differential equation solver.

Wave Features

This section provides an overview of WEC-Sim’s wave class features. For more information about the wave class code structure, refer to Wave Class. The various wave features can be compared by running the cases within the WEC-Sim/Examples/RM3 and the WEC-Sim/Examples/OSWEC directories.

Irregular Wave Binning

WEC-Sim’s default spectral binning method divides the wave spectrum into 499 bins with equal energy content, defined by 500 wave frequencies. As a result, the wave forces on the WEC using the equal energy method are only computed at each of the 500 wave frequencies. The equal energy formulation speeds up the irregular wave simulation time by reducing the number of frequencies the wave train is defined by, and thus the number of frequencies for which the wave forces are calculated. It prevents bins with very little energy from being created and unnecessarily adding to the computational cost. The equal energy method is specified by defining the following wave class variable in the WEC-Sim input file:

waves.bem.option = 'EqualEnergy';

By comparison, the traditional method divides the wave spectrum into a sufficiently large number of equally spaced bins to define the wave spectrum. WEC-Sim’s traditional formulation uses 999 bins, defined by 1000 wave frequencies of equal frequency distribution. To override WEC-Sim’s default equal energy method, and instead use the traditional binning method, the following wave class variable must be defined in the WEC-Sim input file:

waves.bem.option = 'Traditional';

Users may override the default number of wave frequencies by defining waves.bem.count. However, it is on the user to ensure that the wave spectrum is adequately defined by the number of wave frequencies, and that the wave forces are not impacted by this change.

Wave Directionality

WEC-Sim has the ability to model waves with various angles of incidence, $\theta$. To define wave directionality in WEC-Sim, the following wave class variable must be defined in the WEC-Sim input file:

waves.direction = <user defined wave direction(s)>; %[deg]

The incident wave direction has a default heading of 0 Degrees (Default = 0), and should be defined as a column vector for more than one wave direction. For more information about the wave formulation, refer to Wave Spectra.

Wave Directional Spreading

WEC-Sim has the ability to model waves with directional spreading, $D\left( \theta \right)$. To define wave directional spreading in WEC-Sim, the following wave class variable must be defined in the WEC-Sim input file:

waves.spread = <user defined directional spreading>;

The wave directional spreading has a default value of 1 (Default = 1), and should be defined as a column vector of directional spreading for each one wave direction. For more information about the spectral formulation, refer to Wave Spectra.

Note

Users must define appropriate spreading parameters to ensure energy is conserved. Recommended directional spreading functions include Cosine-Squared and Cosine-2s.

Multiple Wave-Spectra

The Wave Directional Spreading feature only allows splitting the same wave-front. However, quite often mixed-seas are composed of disparate Wave-Spectra with unique periods, heights, and directions. An example would be a sea-state composed of swell-waves and chop-waves.

Assuming that the linear potential flow theory holds, the wave inputs to the system can be super-imposed. This implies, the effects of multiple Wave-Spectra can be simulated, if the excitation-forces for each Wave-Spectra is calculated, and added to the pertinent Degree-of-Freedom.

WEC-Sim can simulate the dynamics of a body experiencing multiple Wave-Spectra each with their unique directions, periods, and heights. In order to calculate the excitation-forces for multiple Wave-Spectra, WEC-Sim automatically generates multiple instances of excitation-force sub-systems. The user only needs to create multiple instances of the waves class.

Here is an example for setting up multiple Wave-Spectra in the WEC-Sim input file:

waves(1)           = waveClass('regularCIC');   % Initialize Wave Class and Specify Type
waves(1).height    = 2.5;                       % Wave Height [m]
waves(1).period    = 8;                         % Wave Period [s]
waves(1).direction = 0;                         % Wave Direction (deg.)
waves(2)           = waveClass('regularCIC');   % Initialize Wave Class and Specify Type
waves(2).height    = 2.5;                       % Wave Height [m]
waves(2).period    = 8;                         % Wave Period [s]
waves(2).direction = 90;                        % Wave Direction (deg.)

Note

1. If using a wave-spectra with different wave-heading directions, ensure that the BEM data has the hydrodynamic coefficients corresponding to the desired wave-heading direction,

2. All wave-spectra should be of the same type, i.e., if waves(1) is initialized as waves(1) = waveClass('regularCIC'), the following waves(#) object should initialized the same way.

Addtionally, the multiple Wave-Spectra can be visualized as elaborated in Wave Markers. The user needs to define the marker parameters for each Wave-Spectra, as one would for a single Wave-Spectra.

Here is an example of 2 Wave-Spectra being visualized using the wave wave-markers feature:

Here is a visualization of two Wave-Spectra, represented by red markers and blue markers respectively.

Irregular Waves with Seeded Phase

By default, the phase for all irregular wave cases are generated randomly. In order to reproduce the same time-series every time an irregular wave simulation is run, the following wave class variable may be defined in the WEC-Sim input file:

waves.phaseSeed = <user defined seed>;

By setting waves.phaseSeed equal to 1,2,3,…,etc, the random wave phase generated by WEC-Sim is seeded, thus producing the same random phase for each simulation.

Wave Gauge Placement

Wave gauges can be included through the wave class parameters:

waves.marker.location
waves.marker.size
waves.marker.style

By default, the wave surface elevation at the origin is calculated by WEC-Sim. In past releases, there was the option to define up to three numerical wave gauge locations where WEC-Sim would also calculate the undisturbed linear incident wave elevation. WEC-Sim now has the feature to define wave markers that oscillate vertically with the undistrubed linear wave elevation (see Wave Markers). This feature does not limit the number of point measurements of the undisturbed free surface elevation and the time history calculation at the marker location is identical to the previous wave gauge implementation. Users who desire to continuing using the previous wave gauge feature will only need to update the variable called within WEC-Sim and an example can be found in the WECCCOMP Repository.

Note

The numerical wave markers (wave gauges) do not handle the incident wave interaction with the radiated or diffracted waves that are generated because of the presence and motion of any hydrodynamic bodies.

Ocean Current

The speed of an ocean current can be included through the wave class parameters:

waves.current.option
waves.current.speed
waves.current.direction
waves.current.depth

The current option determines the method used to propagate the surface current across the specified depth. Option 0 is depth independent, option 1 uses a 1/7 power law, option 2 uses linear variation with depth and option 3 specifies no ocean current. The current.speed parameter represents the surface current speed, and current.depth the depth at which the current speed decays to zero (given as a positive number). See Ocean Current for more details on each method. These parameters are used to calculate the fluid velocity in the Morison Element calculation.

Body Features

This section provides an overview of WEC-Sim’s body class features; for more information about the body class code structure, refer to Body Class.

Body Mass and Geometry Features

The mass of each body must be specified in the WEC-Sim input file. The following features are available:

Floating Body - the user may set body(i).mass = 'equilibrium' which will calculate the body mass based on displaced volume and water density. If simu.nonlinearHydro = 0, then the mass is calculated using the displaced volume contained in the *.h5 file. If simu.nonlinearHydro = 1 or simu.nonlinearHydro = 2, then the mass is calculated using the displaced volume of the provided STL geometry file.
Fixed Body - if a body is fixed to the seabed using a fixed constraint, the mass and moment of inertia may be set to arbitrary values such as 999 kg and [999 999 999] kg-m^2. If the constraint forces on the fixed body are important, the mass and inertia should be set to their real values.
Import STL - to read in the geometry (*.stl) into Matlab use the body(i).importBodyGeometry() method in the bodyClass. This method will import the mesh details (vertices, faces, normals, areas, centroids) into the body(i).geometry property. This method is also used for nonlinear buoyancy and Froude-Krylov excitation and ParaView visualization files. Users can then visualize the geometry using the body(i).plotStl method.

Nonlinear Buoyancy and Froude-Krylov Excitation

WEC-Sim has the option to include the nonlinear hydrostatic restoring and Froude-Krylov forces when solving the system dynamics of WECs, accounting for the weakly nonlinear effect on the body hydrodynamics. To use nonlinear buoyancy and Froude-Krylov excitation, the body(ii).nonlinearHydro bodyClass variable must be defined in the WEC-Sim input file, for example:

body(ii).nonlinearHydro = 2

For more information, refer to the Series 2 - Nonlinear Buoyancy and Froude-Krylov Wave Excitation, and the NonlinearHydro example on the WEC-Sim Applications repository.

Nonlinear Settings

body(ii).nonlinearHydro - The nonlinear hydrodynamics option can be used with the parameter: body(ii).nonlinearHydro in your WEC-Sim input file. When any of the three nonlinear options (below) are used, WEC-Sim integrates the wave pressure over the surface of the body, resulting in more accurate buoyancy and Froude-Krylov force calculations.

Option 1. body(ii).nonlinearHydro = 1 This option integrates the pressure due to the mean wave elevation and the instantaneous body position.

Option 2. body(ii).nonlinearHydro = 2 This option integrates the pressure due to the instantaneous wave elevation and the instantaneous body position. This option is recommended if nonlinear effects need to be considered.

simu.nonlinearDt - An option available to reduce the nonlinear simulation time is to specify a nonlinear time step, simu.nonlinearDt=N*simu.dt, where N is number of increment steps. The nonlinear time step specifies the interval at which the nonlinear hydrodynamic forces are calculated. As the ratio of the nonlinear to system time step increases, the computation time is reduced, again, at the expense of the simulation accuracy.

Note

WEC-Sim’s nonlinear buoyancy and Froude-Krylov wave excitation option may be used for regular or irregular waves but not with user-defined irregular waves.

STL File Generation

When the nonlinear option is turned on, the geometry file (*.stl) (previously only used for visualization purposes in linear simulations) is used as the discretized body surface on which the nonlinear pressure forces are integrated. As in the linear case, the STL mesh origin must be at a body’s center of gravity.

A good STL mesh resolution is required when using the nonlinear buoyancy and Froude-Krylov wave excitation in WEC-Sim. The simulation accuracy will increase with increased surface resolution (i.e. the number of discretized surface panels specified in the *.stl file), but the computation time will also increase. There are many ways to generate an STL file; however, it is important to verify the quality of the mesh before running WEC-Sim simulations with the nonlinear hydro flag turned on. An STL file can be exported from most CAD programs, but few allow adequate mesh refinement. By default, most CAD programs write an STL file similar to the left figure, with the minimum panels possible. To accurately model nonlinear hydrodynamics in WEC-Sim, STL files should be refined to have an aspect ratio close to one, and contain a high resolution in the vertical direction so that an accurate instantaneous displaced volume can be calculated.

Many commercial and free software exist to convert between mesh formats and refine STL files, including:

Free CAD
BEM Rosetta
Meshmagick
Coreform CUBIT (commercial)
Rhino (commercial)

Nonlinear Buoyancy and Froude-Krylov Wave Excitation Tutorial - Heaving Ellipsoid

The body tested in the study is an ellipsoid with a cross- section characterized by semi-major and -minor axes of 5.0 m and 2.5 m in the wave propagation and normal directions, respectively . The ellipsoid is at its equilibrium position with its origin located at the mean water surface. The mass of the body is then set to 1.342×105 kg, and the center of gravity is located 2 m below the origin.

STL file with the discretized body surface is shown below (ellipsoid.stl)

The single-body heave only WEC model is shown below (nonLinearHydro.slx)

The WEC-Sim input file used to run the nonlinear hydro WEC-Sim simulation:

%% Simulation Data
simu = simulationClass();
simu.simMechanicsFile = 'ellipsoid.slx';
simu.mode = 'normal';                   % Specify Simulation Mode ('normal','accelerator','rapid-accelerator')
simu.explorer='off';                     % Turn SimMechanics Explorer (on/off)
simu.startTime = 0;
simu.rampTime = 50;
simu.endTime=150;
simu.dt = 0.05;
simu.rho=1025;

%% Wave Information
% Regular Waves
waves = waveClass('regular');
waves.height = 4;
waves.period = 6;

%% Body Data
body(1) = bodyClass('../../hydroData/ellipsoid.h5');
body(1).mass = 'equilibrium';
body(1).inertia = ...
    [1.375264e6 1.375264e6 1.341721e6];
body(1).geometryFile = '../../geometry/elipsoid.stl' ;
body(1).quadDrag.cd=[1 0 1 0 1 0];
body(1).quadDrag.area=[25 0 pi*5^2 0 pi*5^5 0];
body(1).nonlinearHydro = 2;                       % Non-linear hydro on/off

%% PTO and Constraint Parameters
% Fixed Constraint
constraint(1) = constraintClass('Constraint1');
constraint(1).location = [0 0 -12.5];

% Translational PTO
pto(1) = ptoClass('PTO1');
pto(1).stiffness=0;
pto(1).damping=1200000;
pto(1).location = [0 0 -12.5];

Simulation and post-processing is the same process as described in the Tutorials section.

Viscous Damping and Morison Elements

WEC-Sim allows for the definition of additional damping and added-mass terms to allow users to tune their models precisely. Viscous damping and Morison Element may be defined for hydrodynamic, drag, or flexible bodies. It is highly recommended that users add viscous or Morison drag to create a realistic model.

When the Morison Element option is used in combination with a hydrodynamic or flexible body, it serves as a tuning method. The equation of motion for hydrodynamic and flexible bodies with a Morison Element is more complex than the traditional Morison Element formulation. A traditional Morison Element may be created by using a drag body (body(#).nonHydro=2) with body(#).morisonElement.option = 1 or 2. For more information about the numerical formulation of viscous damping and Morison Elements, refer to the theory section Viscous Damping and Morison Elements.

Viscous Damping

A viscous damping force in the form of a linear damping coefficient $C_{v}$ can be applied to each body by defining the following body class parameter in the WEC-Sim input file (which has a default value of zero):

body(i).linearDamping

A quadratic drag force, proportional to the square of the body’s velocity, can be applied to each body by defining the quadratic drag coefficient $C_{d}$, and the characteristic area $A_{d}$ for drag calculation. This is achieved by defining the following body class parameters in the WEC-Sim input file (each of which have a default value of zero):

body(i).quadDrag.cd
body(i).quadDrag.area

Alternatively, one can define $C_{D}$ directly:

body(i).quadDrag.drag

Morison Elements

To use Morison Elements, the following body class variable must be defined in the WEC-Sim input file with body(ii).morisonElement.option.

Implementation Option 0 Morison Elements are not included in the body force and moment calculations.

Implementation Option 1 allows for the Morison Element properties to be defined independently for the x-, y-, and z-axis while Implementation Option 2 uses a normal and tangential representation of the Morison Element properties. Note that the two options allow the user flexibility to implement hydrodynamic forcing that best suits their modeling needs; however, the two options have slightly different calculation methods and therefore the outputs will not necessarily provide the same forcing values. The user is directed to look at the Simulink Morison Element block within the WEC-Sim library to better determine which approach better suits their modeling requirements.

Morison Elements must be defined for each body using the body(i).morisonElement property of the body class. This property requires definition of the following body class parameters in the WEC-Sim input file (each of which have a default value of zero(s)).

For body(ii).morisonElement.option = 1

body(i).morisonElement.cd = [c_{dx} c_{dy} c_{dz}]
body(i).morisonElement.ca = [c_{ax} c_{ay} c_{az}]
body(i).morisonElement.area = [A_{x} A_{y} A_{z}]
body(i).morisonElement.VME = [V_{me}]
body(i).morisonElement.rgME = [r_{gx} r_{gy} r_{gz}]
body(i).morisonElement.z = [0 0 0]

Note

For Option 1, the unit normal body(#).morisonElement.z must be initialized as a [n x3] vector, where n is the number of Morison Elements, although it will not be used in the hydrodynamic calculation.

For body(ii).morisonElement.option = 2

body(i).morisonElement.cd = [c_{dn} c_{dt} 0]
body(i).morisonElement.ca = [c_{an} c_{at} 0]
body(i).morisonElement.area = [A_{n} A_{t} 0]
body(i).morisonElement.VME = [V_{me}]
body(i).morisonElement.rgME = [r_{gx} r_{gy} r_{gz}]
body(i).morisonElement.z = [z_{x} z_{y} z_{z}]

Note

For Option 2, the body(i).morisonElement.cd, body(i).morisonElement.ca, and body(i).morisonElement.area variables need to be initialized as [n x3] vector, where n is the number of Morison Elements, with the third column index set to zero. While body(i).morisonElement.z is a unit normal vector that defines the orientation of the Morison Element.

To better represent certain scenarios, an ocean current speed can be defined to calculate a more accurate fluid velocity and acceleration on the Morison Element. These can be defined through the wave class parameters waves.current.option, waves.current.speed, waves.current.direction, and waves.current.depth. See Ocean Current for more detail on using these options.

The Morison Element time-step may also be defined as simu.morisonDt = N*simu.dt, where N is number of increment steps. For an example application of using Morison Elements in WEC-Sim, refer to the WEC-Sim Applications repository Free_Decay/1m-ME example.

Note

Morison Elements cannot be used with elevationImport.

Non-Hydrodynamic Bodies

For some simulations, it might be important to model bodies that do not have hydrodynamic forces acting on them. This could be bodies that are completely outside of the water but are still connected through a joint to the WEC bodies, or it could be bodies deeply submerged to the point where the hydrodynamics may be neglected. WEC-Sim allows for bodies which have no hydrodynamic forces acting on them and for which no BEM data is provided.

To do this, use a Body Block from the WEC-Sim Library and initialize it in the WEC-Sim input file as any other body but leave the name of the h5 file as an empty string. Specify body(i).nonHydro = 1; and specify body name, mass, moments of inertia, center of gravity, center of buoyancy, geometry file, location, and displaced volume. You can also specify visualization options and initial displacement.

To use non-hydrodynamic bodies, the following body class variable must be defined in the WEC-Sim input file, for example:

body(i).nonHydro = 1

Non-hydrodynamic bodies require the following properties to be defined:

body(i).mass
body(i).inertia
body(i).centerGravity
body(i).volume

In the case where only non-hydrodynamic and drag bodies are used, WEC-Sim does not read an *.h5 file. Users must define these additional parameters to account for certain wave settings as there is no hydrodynamic body present in the simulation to define them:

waves.bem.range
waves.waterDepth

For more information, refer to Series 2 - Nonlinear Buoyancy and Froude-Krylov Wave Excitation, and the Nonhydro_Body example on the WEC-Sim Applications repository.

Drag Bodies

A body may be subjected to viscous drag or Morison forces, but does not experience significant wave excitation or radiation. And example may be a deeply-submerged heave plate of large surface area tethered to a float. In these instances, the drag body implementation can be utilized by defining the following body class variable:

body(i).nonHydro = 2

Drag bodies have zero wave excitation or radiation forces, but viscous forces can be applied in the same manner as a hydrodynamic body via the parameters:

body(i).quadDrag.drag
body(i).quadDrag.cd
body(i).quadDrag.area
body(i).linearDamping

or if using Morison Elements:

body(i).morisonElement.cd
body(i).morisonElement.ca
body(i).morisonElement.area
body(i).morisonElement.VME
body(i).morisonElement.rgME

which are described in more detail in the forthcoming section. At a minimum, it is necessary to define:

body(i).mass
body(i).inertia
body(i).centerGravity
body(i).volume

to resolve drag body dynamics. One can additionally describe initial body displacement in the manner of a hydrodynamic body.

Body-To-Body Interactions

WEC-Sim allows for body-to-body interactions in the radiation force calculation, thus allowing the motion of one body to impart a force on all other bodies. The radiation matrices for each body (radiation wave damping and added mass) required by WEC-Sim and contained in the *.h5 file. For body-to-body interactions with N total hydrodynamic bodies, the *h5 data structure is [(6*N), 6].

When body-to-body interactions are used, the augmented [(6*N), 6] matrices are multiplied by concatenated velocity and acceleration vectors of all hydrodynamic bodies. For example, the radiation damping force for body(2) in a 3-body system with body-to-body interactions would be calculated as the product of a [1,18] velocity vector and a [18,6] radiation damping coefficients matrix.

To use body-to-body interactions, the following simulation class variable must be defined in the WEC-Sim input file:

simu.b2b = 1

For more information, refer to Series 2 - Nonlinear Buoyancy and Froude-Krylov Wave Excitation, and the RM3_B2B example in the WEC-Sim Applications repository.

Note

By default, body-to-body interactions are off (simu.b2b = 0), and only the $[1+6(i-1):6i, 1+6(i-1):6i]$ sub-matrices are used for each body (where $i$ is the body number).

Generalized Body Modes

To use this, select a Flex Body Block from the WEC-Sim Library (under Body Elements) and initialize it in the WEC-Sim input file as any other body. Calculating dynamic response of WECs considering structural flexibility using WEC-Sim should consist of multiple steps, including:

Modal analysis of the studied WEC to identify a set of system natural frequencies and corresponding mode shapes
Construct discretized mass and impedance matrices using these structural modes
Include these additional flexible degrees of freedom in the BEM code to calculate hydrodynamic coefficients for the WEC device
Import the hydrodynamic coefficients to WEC-Sim and conduct dynamic analysis of the hybrid rigid and flexible body system

The WEC-Sim Applications repository contains a working sample of a barge with four additional degrees of freedom to account for bending and shearing of the body. See this example for details on how to implement and use generalized body modes in WEC-Sim.

Note

Generalized body modes module has only been tested with WAMIT, where BEMIO may need to be modified for NEMOH, Aqwa and Capytaine.

Passive Yaw Implementation

For non-axisymmetric bodies with yaw orientation that changes substantially with time, WEC-Sim allows a correction to excitation forces for large yaw displacements. To enable this correction, add the following to your wecSimInputFile:

body(ii).yaw.option = 1

Under the default implementation (body(ii).yaw.option = 0), WEC-Sim uses the initial yaw orientation of the device relative to the incident waves to calculate the wave excitation coefficients that will be used for the duration of the simulation. When the correction is enabled, excitation coefficients are interpolated from BEM data based upon the instantaneous relative yaw position. For this to enhance simulation accuracy, BEM data must be available over the range of observed yaw positions at a sufficiently dense discretization to capture the significant variations of excitation coefficients with yaw position. For robust simulation, BEM data should be available from -180 to 170 degrees of yaw (or equivalent).

This can increase simulation time, especially for irregular waves, due to the large number of interpolations that must occur. To prevent interpolation at every time-step, body(ii).yaw.threshold (default 1 degree) can be specified in the wecSimInputFile to specify the minimum yaw displacement (in degrees) that must occur before another interpolation of excitation coefficients will be calculated. The minimum threshold for good simulation accuracy will be device specific: if it is too large, no interpolation will occur and the simulation will behave as body(ii).yaw.option = 0, but overly small values may not significantly enhance simulation accuracy while increasing simulation time.

When body(ii).yaw.option = 1, hydrostatic and radiation forces are determined from the local body-fixed coordinate system based upon the instantaneous relative yaw position of the body, as this may differ substantially from the global coordinate system for large relative yaw values.

A demonstration case of this feature is included in the PassiveYaw example on the WEC-Sim Applications repository.

Note

Caution must be exercised when simultaneously using passive yaw and body-to-body interactions. Passive yaw relies on interpolated BEM solutions to determine the cross-coupling coefficients used in body-to-body calculations. Because these BEM solutions are based upon the assumption of small displacements, they are unlikely to be accurate if a large relative yaw displacement occurs between the bodies.

Large X-Y Displacements

By default, the excitation force applied to the modeled body is calculated at the body’s CG position as defined in BEM. If large lateral displacements (i.e., in the x or y direction by the default WEC-Sim coordinate system) are expected for the modeled device, it may be desirable to adjust the excitation force to account for this displacment.

When body(i).largeXYDisplacement.option = 1, the phase of the excitation force exerted on the body is adjusted based upon its displacement as

$\phi_{displacement} = k \omega x(1)*cos(\frac{\theta \pi}{180}) + x(2).*sin(\frac{\theta \pi}{180})$

where k is waves.wavenumber, x(1,2) is displacement in the (x,y) direction, $\omega$ is waves.omega, and $\theta$ is waves.direction (in degrees). This phase is thus the same size as waves.phase, and is then summed with waves.phase to determine excitation force.

Note that this adjustment only affects the incident exciting waves, not the total wave field that is the superposition of exciting and radiating waves. This implies that this adjustment is only valid for cases where the lateral velocity of the body is significantly less than the celerity of its radiated waves, and is thus not appropriate for sudden, rapid displacements.

Note

This feature has not been implemented for a user-defined wave elevation.

Constraint and PTO Features

This section provides an overview of WEC-Sim’s constraint and PTO classes; for more information about the constraint and PTO classes’ code structure, refer to Constraint Class and PTO Class.

Modifying Constraints and PTOs

The default linear and rotational constraints and PTOs allow for heave and pitch motions of the follower relative to the base. To obtain a linear or rotational constraint in a different direction you must modify the constraint’s or PTO’s coordinate orientation. The important thing to remember is that a linear constraint or PTO will always allow motion along the joint’s Z-axis, and a rotational constraint or PTO will allow rotation about the joint’s Y-axis. To obtain translation along or rotation about a different direction relative to the global frame, you must modify the orientation of the joint’s coordinate frame. This is done by setting the constraint’s or PTO’s orientation.z and orientation.y properties which specify the new direction of the Z- and Y- joint coordinates. The Z- and Y- directions must be perpendicular to each other.

As an example, if you want to constrain body 2 to surge motion relative to body 1 using a linear constraint, you would need the constraint’s Z-axis to point in the direction of the global surge (X) direction. This would be done by setting constraint(i).orientation.z=[1,0,0] and the Y-direction to any perpendicular direction (can be left as the default y=[0 1 0]). In this example, the Y-direction would only have an effect on the coordinate on which the constraint forces are reported but not on the dynamics of the system. Similarly if you want to obtain a yaw constraint you would use a rotational constraint and align the constraint’s Y-axis with the global Z-axis. This would be done by setting constraint(i).orientation.y=[0,0,1] and the z-direction to a perpendicular direction (say [0,-1,0]).

Note

When using the Actuation Force/Torque PTO or Actuation Motion PTO blocks, the loads and displacements are specified in the local (not global) coordinate system. This is true for both the sensed (measured) and actuated (commanded) loads and displacements.

Additionally, by combining constraints and PTOs in series you can obtain different motion constraints. For example, a massless rigid rod between two bodies, hinged at each body, can be obtained by using a two rotational constraints in series, both rotating in pitch, but with different locations. A roll-pitch constraint can also be obtained with two rotational constraints in series; one rotating in pitch, and the other in roll, and both at the same location.

Incorporating Joint/Actuation Stroke Limits

Beginning in MATLAB 2019a, hard-stops can be specified directly for PTOs and translational or rotational constraints by specifying joint-primitive dialog options in the wecSimInputFile.m. Limits are modeled as an opposing spring damper force applied when a certain extents of motion are exceeded. Note that in this implementation, it is possible that the constraint/PTO will exceed these limits if an inadequate spring and/or damping coefficient is specified, acting instead as a soft motion constraint. More detail on this implementation can be found in the Simscape documentation. To specify joint or actuation stroke limits for a PTO, the following parameters must be specified in wecSimInputFile.m

code:

pto(i).hardStops.upperLimitSpecify = ‘on’

code:

pto(i).hardStops.lowerLimitSpecify = ‘on’

to enable upper and lower stroke limits, respectively. The specifics of the limit and the acting forces at the upper and lower limits are described in turn by

pto(i).hardStops.upperLimitBound pto(i).hardStops.upperLimitStiffness pto(i).hardStops.upperLimitDamping pto(i).hardStops.upperLimitTransitionRegionWidth pto(i).hardStops.lowerLimitBound pto(i).hardStops.lowerLimitStiffness pto(i).hardStops.lowerLimitDamping pto(i).hardStops.lowerLimitTransitionRegionWidth

where pto(i) is replaced with constraint(i) on all of the above if the limits are to be applied to a constraint.

In MATLAB versions prior to 2019a, specifying any of the above parameters will have no effect on the simulation, and may generate warnings. It is instead recommended that hard-stops are implemented in a similar fashion using an Actuation Force/Torque PTO block in which the actuation force is specified in a custom MATLAB Function block.

Setting PTO or Constraint Extension

The PTO and Constraint classes have an Extension value that can be specified to define the initial displacement of the PTO or constraint at the beginning of the simulation, allowing the user to set the ideal position for maximum wave capture and energy generation. This documentation will use the PTO as an example, but the proces is applicable to both translational, rotational, or spherical PTOs and constraints. Whereas the initial displacement feature only defines this updated position for the PTO, the PTO Extension feature propagates the change in position to all bodies and joints on the Follower side of the PTO block. This allows for an accurate reflection of the initial locations of each component without having to calculate and individually define each initial displacement or rotation. To set the extension of a PTO, the following parameter must be specified in wecSimInputFile.m:

pto(i).extension.PositionTargetSpecify = '1'

to enable the joint’s target position value to be defined. The specifics of the extension are described in turn by:

pto(i).extension.PositionTargetValue
pto(i).extension.PositionTargetPriority

PositionTargetValue defines the extension magnitude and PositionTargetPriority specifies Simulink’s priority in setting the initial target value in regards to other constraints and PTOs. The priority is automatically set to “High” when the extension is initialized but can be adjusted to “Low” if required by Simulink.

The figure below shows the PTO extension feature on the WECCCOMP model at 0.1 m. The left image is at equilibrium (pto(i).extension.PositionTargetSpecify=0), and the right image set as pto(i).extension.PositionTargetSpecify=1 with the WEC body moving in accordance with the set PTO Extension value.

../_images/WECCCOMP_PTO_Extension.png — WECCCOMP Model PTO Extension

While this method generally fits most WEC models, there are specific designs such as the RM3 that may have a larger DOF and are dependent on the particular block orientation in the simulink model in terms of which body blocks will move in response to a PTO initial extension. These specific cases require extra setup on the users end if looking to define a different body’s motion than the one automatically established. For the RM3 model, a set PTO Extension value results in movement in the float body. However, if the user would like the movement to be within the spar instead, extra steps are required. To view examples of how to set the PTO Extension for both the float as well as the spar view the RM3 PTO Extension examples on the WEC-Sim Applications repository .

For the spherical PTO which can rotate about three axes, pto(i).extension.PositionTargetValue must be a 1x3 array that specifying three consecutive rotations about the Base frame’s axes in the X-Y-Z convention.

Note

The PTO extension is not valid for PTO already actuated by user-defined motion (Translational PTO Actuation Motion, Rotational PTO Actuation Motion).

PTO-Sim

PTO-Sim is the WEC-Sim module responsible for accurately modeling a WEC’s conversion of mechanical power to electrical power. While the PTO blocks native to WEC-Sim are modeled as a simple linear spring-damper systems, PTO-Sim is capable of modeling many power conversion chains (PCC) such as mechanical and hydraulic drivetrains. PTO-Sim is made of native Simulink blocks coupled with WEC-Sim, using WEC-Sim’s user-defined PTO blocks, where the WEC-Sim response (relative displacement and velocity for linear motion and angular position and velocity for rotary motion) is the PTO-Sim input. Similarly, the PTO force or torque is the WEC-Sim input. For more information on how PTO-Sim works, refer to [So et al., 2015] and Series 3 - Non-hydrodynamic Bodies.

The files for the PTO-Sim tutorials described in this section can be found in the PTO-Sim examples on the WEC-Sim Applications repository . Four PTO examples are contained in the PTO-Sim application and can be used as a starting point for users to develop their own. They cover two WEC types and mechanical, hydraulic, and electrial PTO’s:

PTO-Sim Application

Description

RM3_cHydraulic_PTO

RM3 with compressible hydraulic PTO

RM3_DD_PTO

RM3 with direct drive linear generator

OSWEC_Hydraulic_PTO

OSWEC with hydraulic PTO (adjustable rod)

OSWEC_Hydraulic_Crank_PTO

OSWEC with hydraulic PTO (crank)

Tutorial: RM3 with PTO-Sim

This section describes how to use RM3 with PTO-Sim. Two tutorials will be given in this section: one for the RM3 with a hydraulic PTO and another for the RM3 with a direct drive PTO.

RM3 with Hydraulic PTO

The hydraulic PTO example used in this section consists of a piston, a rectifying valve, a high pressure accumulator, a hydraulic motor coupled to a rotary generator, and a low pressure accumulator.

In this section, a step by step tutorial on how to set up and run the RM3 simulation with PTO-Sim is provided. All the files used in WEC-Sim will remain the same, but some may need to be added to the working folder. The wecSimInputFile.m must be modified to add the definition of the different PTO-Sim blocks. The files used to run RM3 with PTO-Sim case are the following:

WEC-Sim input file: wecSimInputFile.m (make sure to set the PTO linear damping to zero)
Simulink model: RM3.slx
Geometry file for each body: float.stl and plate.stl
Hydrodynamic data file(s): rm3.h5
Optional user defined post-processing file: userDefinedFunction.m

Simulink Model

The Simulink model can be built as follows:

Step 1: Navigate to the RM3 example $WECSIM/examples/RM3.
Step 2: Open RM3.slx file and replace Translational PTO with Translational PTO Actuation Force.

Step 3: Create a subsystem and rename it to PTO-Sim where the input is the response and output is force.

Step 4: Go to Simulink Library Browser to access the PTO-Sim Library.

Step 5: By looking at the physical hydraulic PTO model as shown above, the user can simply drag and drop PTO-Sim library blocks. Hydraulic cylinder, rectifying valve, and accumulator blocks are located under the Hydraulic block. The electric generator equivalent circuit is located under the Electric library.
Step 6: Since multiple PTO-Sim blocks will be used, it is necessary to name each block to identify them when its variables are defined in the wecSimInputFile.m. To change the name of each block, double click the block and add the name ptoSim(i) where i must be different for each block used in the simulation. The name of each block will be used in the wecSimInputFile.m to define its variables.

Step 7: Connect the inputs and outputs of the blocks according to the desired physical layout.

Step 8: Define the input for Rload in the Electric Generator block. The input could be a constant value or it could be used to control the load of the generator to achieve a desired physical behaviour. In this example, the value of Rload is used to control the shaft speed of the generator by using a simple PI controller. The desired shaft speed in this case is 1000 rpm. The Electric Generator Equivalent Circuit block has two outputs: the electromagnetic torque and the shaft speed. It is necessary to use a bus selector to choose the desired output, which in this example is the shaft speed.

Input File

In this section, the WEC-Sim input file (wecSimInputFile.m) is defined and categorized into sections such as hydraulic cylinder, rectifying check valve, high pressure accumulator, low pressure accumulator, hydraulic motor, and generator.

%% Simulation Data
simu = simulationClass();
simu.simMechanicsFile = 'RM3_cHydraulic_PTO.slx'; %Location of Simulink Model File with PTO-Sim
simu.startTime = 0;
simu.rampTime = 100;
simu.endTime=400;
simu.dt = 0.01;
simu.explorer = 'off';                     % Turn SimMechanics Explorer (on/off)

%% Wave Information
%Irregular Waves using PM Spectrum
waves = waveClass('irregular');
waves.height = 2.5;
waves.period = 8;
waves.spectrumType = 'PM';
waves.phaseSeed=1;

%% Body Data
% Float
body(1) = bodyClass('../../../_Common_Input_Files/RM3/hydroData/rm3.h5');
body(1).geometryFile = '../../../_Common_Input_Files/RM3/geometry/float.stl';
body(1).mass = 'equilibrium';
body(1).inertia = [20907301 21306090.66 37085481.11];

% Spar/Plate
body(2) = bodyClass('../../../_Common_Input_Files/RM3/hydroData/rm3.h5');
body(2).geometryFile = '../../../_Common_Input_Files/RM3/geometry/plate.stl';
body(2).mass = 'equilibrium';
body(2).inertia = [94419614.57 94407091.24 28542224.82];

%% PTO and Constraint Parameters
% Floating (3DOF) Joint
constraint(1) = constraintClass('Constraint1');
constraint(1).location = [0 0 0];

% Translational PTO
pto(1) = ptoClass('PTO1');           	% Initialize PTO Class for PTO1
pto(1).stiffness = 0;                           % PTO Stiffness [N/m]
pto(1).damping = 0;                           % PTO Damping [N/(m/s)]
pto(1).location = [0 0 0];                   % PTO Location [m]

%% PTO new blocks

%Hydraulic Cylinder
ptoSim(1) = ptoSimClass('hydraulicCyl');
ptoSim(1).hydPistonCompressible.xi_piston = 35;
ptoSim(1).hydPistonCompressible.Ap_A = 0.0378;
ptoSim(1).hydPistonCompressible.Ap_B = 0.0378;
ptoSim(1).hydPistonCompressible.bulkModulus = 1.86e9;
ptoSim(1).hydPistonCompressible.pistonStroke = 70;
ptoSim(1).hydPistonCompressible.pAi = 2.1333e7;
ptoSim(1).hydPistonCompressible.pBi = 2.1333e7;

%Rectifying Check Valve
ptoSim(2) = ptoSimClass('rectCheckValve');
ptoSim(2).rectifyingCheckValve.Cd = 0.61;
ptoSim(2).rectifyingCheckValve.Amax = 0.002;
ptoSim(2).rectifyingCheckValve.Amin = 1e-8;
ptoSim(2).rectifyingCheckValve.pMax = 1.5e6;
ptoSim(2).rectifyingCheckValve.pMin = 0;
ptoSim(2).rectifyingCheckValve.rho = 850;
ptoSim(2).rectifyingCheckValve.k1 = 200;
ptoSim(2).rectifyingCheckValve.k2 = ...
    atanh((ptoSim(2).rectifyingCheckValve.Amin-(ptoSim(2).rectifyingCheckValve.Amax-ptoSim(2).rectifyingCheckValve.Amin)/2)*...
    2/(ptoSim(2).rectifyingCheckValve.Amax - ptoSim(2).rectifyingCheckValve.Amin))*...
    1/(ptoSim(2).rectifyingCheckValve.pMin-(ptoSim(2).rectifyingCheckValve.pMax + ptoSim(2).rectifyingCheckValve.pMin)/2);

%High Pressure Hydraulic Accumulator
ptoSim(3) = ptoSimClass('hydraulicAcc');
ptoSim(3).gasHydAccumulator.vI0 = 8.5;
ptoSim(3).gasHydAccumulator.pIprecharge = 2784.7*6894.75;

%Low Pressure Hydraulic Accumulator
ptoSim(4) = ptoSimClass('hydraulicAcc');
ptoSim(4).gasHydAccumulator.vI0 = 8.5;
ptoSim(4).gasHydAccumulator.pIprecharge = 1392.4*6894.75;

%Hydraulic Motor
ptoSim(5) = ptoSimClass('hydraulicMotor');
ptoSim(5).hydraulicMotor.effModel = 2;
ptoSim(5).hydraulicMotor.displacement = 120;
ptoSim(5).hydraulicMotor.effTableShaftSpeed = linspace(0,2500,20);
ptoSim(5).hydraulicMotor.effTableDeltaP = linspace(0,200*1e5,20);
ptoSim(5).hydraulicMotor.effTableVolEff = ones(20,20)*0.9;
ptoSim(5).hydraulicMotor.effTableMechEff = ones(20,20)*0.85;

%Electric generator
ptoSim(6) = ptoSimClass('electricGen');
ptoSim(6).electricGeneratorEC.Ra = 0.8;
ptoSim(6).electricGeneratorEC.La = 0.8;
ptoSim(6).electricGeneratorEC.Ke = 0.8;
ptoSim(6).electricGeneratorEC.Jem = 0.8;
ptoSim(6).electricGeneratorEC.bShaft = 0.8;

Simulation and Post-processing

Simulation and post-processing are similar process as described in Two-Body Point Absorber (RM3). There are some specific variable definitions that must be considered when using the output signals of the PTO-Sim blocks. For example, the hydraulic accumulator has two output signals: flow rate and pressure, and the time vector. In the RM3 example with hydraulic PTO, the high pressure hydraulic accumulator was defined as ptoSim(3) in the WEC-Sim input file; then, to use the output flow rate and pressure of this block, the next line of code must be used:

FlowRateAccumulator = output.ptoSim(3).FlowRate PressureAccumulator = output.ptoSim(3).Pressure

In general, the output signal of any PTO-Sim block can be used with this line of code: output.ptoSim(i).VariableName

RM3 with Direct Drive PTO

A mechanical PTO is used in this example and is modeled as a direct drive linear generator. The main components of this example consist of magnets and a coil where the magnet assembly is attached to the heaving float and the coil is located inside the spar. As the float moves up and down, the magnet assembly creates a change in the magnetic field surrounding the spar that contains the coil: therefore, current is induced in the coil and electricity is generated.

Simulink Model

Steps 1 through 4 are the same as in RM3 with Hydraulic PTO.

Step 5: Look for the block “Direct Drive Linear Generator” and drag the block into the PTO-Sim subsystem
Step 6: Connect the input “respose” to the input of the PTO-Sim block and the output “Force” to the output of the subsystem.

Input File, Simulation, and Post-processing

The same as RM3 with Hydraulic PTO.

Tutorial: OSWEC with PTO-Sim

This section describes how to use the OSWEC model with PTO-Sim. The same process as described in RM3 with Hydraulic PTO; however, since the OSWEC is a rotary device, it takes torque as an input and a rotary to linear motion conversion block is needed. The tutorials can be found on the WEC-Sim Applications repository (both for a crank and for a rod).

OSWEC with Hydraulic PTO

A hydraulic PTO or mechanical PTO can be used with OSWEC but for simplicity a hydraulic PTO will be used as an example. An schematic representation of the OSWEC device is shown in the figure below:

Two blocks were developed in the PTO-Sim library to model a system like the OSWEC. The blocks can be found under the Motion Convertion library.

The block “Rotary to Linear Adjustable Rod” is used to model a rod with a variable length. For the OSWEC case, this block can be use when the cylinder rod of the hydraulic PTO is connected to the adjustable rod, like in the schematic presented in the figure below:

On the other hand, the block “Rotary to Linear Crank” is used to model a slider-crank mechanism that is used to convert the rotational motion of the OSWEC device into linear motion for the hydraulic cylinder in the PTO. In this case, the cylinder rod of the hydraulic PTO is connected to the slider part of the mechanism, as shown in the figure below:

Modeling of OSWEC with Hydraulic PTO

The files needed for the OSWEC case are the same as the ones described in RM3 with Hydraulic PTO.

Simulink Model

The Simulink model can be built as following:

Step 1: Copy the OSWEC example folder to get started $WECSIM\examples\OSWEC.
Step 2: Open OSWEC.slx file and replace Rotational PTO with Rotational PTO Actuation Torque.

Step 3: Create a subsystem and rename it to PTO-Sim where input is response and output is torque.

Step 4: Go to Simulink Library Browser to access the PTO-Sim Library.
Step 5: By looking at the physical hydraulic PTO model as shown above, the user can simply drag and drop PTO-Sim library blocks. Hydraulic cylinder, rectifying valve, and accumulator blocks are located under the Hydraulic block. The electric generator equivalent circuit is located under the Electric library. The “Rotary to Linear Adjustable Rod” is under the Motion Conversion library.
Step 6: Since multiple PTO-Sim blocks will be used, it is necessary to name each block to identify them when its variables are defined in the wecSimInputFile.m. To change the name of each block, double click the block and add the name ptoSim(i) where i must be different for each block used in the simulation. The name of each block will be used in the wecSimInputFile.m to define its variables. For this example, the motion conversion block will be called ptoSim(1)

Step 7: Connect the inputs and outputs of the blocks according to the desired physical layout.

Step 8: Define the input for Rload in the Electric Generator block. The input could be a constant value or it could be used to control the load of the generator to achieve a desired physical behaviour. In this example, the value of Rload is used to control the shaft speed of the generator by using a simple PI controller. The desired shaft speed in this case is 3000 rpm. The Electric Generator Equivalent Circuit block has two outputs: the electromagnetic torque and the shaft speed. It is necessary to use a bus selector to choose the desired output, which in this example is the shaft speed.

Input File, Simulation, and Post-processing

The input file for this case is similar to the input file described in RM3 with Hydraulic PTO. The naming and numbering of the PTO blocks change in this case, but the way the variables are defined is the same.

Controller Features

The power generation performance of a WEC is highly dependent on the control algorithm used in the system. There are different control strategies that have been studied for marine energy applications. These control algorithms can be applied directly to the PTO components to achieve a desired output, or they can be high-level controllers which are focused on the total PTO force applied to the WEC. The examples presented in this section are based on high- level controller applications. WEC-Sim’s controller features support the modeling of both simple passive and reactive controllers as well as more complex methods such as model predictive control.

The files for the controller tutorials described in this section can be found in the Controls examples on the WEC-Sim Applications repository . The controller examples are not comprehensive, but provide a reference for user to implement their own controls.

Controller Application

Description

Passive (P)

Sphere with proportional control

Reactive (PI)

Sphere with proportional-integral control

Latching

Sphere with latching control

Declutching

Sphere with declutching control

Model Predictive Control

Sphere with model predictive control

Reactive with PTO

Sphere with reactive control and DD PTO

Examples: Sphere Float with Various Controllers

First, it is important to understand the concept of complex conjugate control. Complex conjugate control, as applied to wave energy conversion, can be used to understand optimal control. For a complex conjugate controller, the impedance of the controller is designed to match the admittance of the device (equal to the complex conjugate of device impedance). Hence, it is also known as impedance matching and is a common practice within electrical engineering. Complex conjugate control is not a completely realizable control method due to its acausality, which means it requires exact knowledge of future wave conditions. Still, a causal transfer function can be used to approximate complex conjugate control across a limited frequency range [C1]. Thus, complex conjugate control presents a reference for the implementation of optimal causal controls. The WEC impedance can be modeled by the following equation [C2] and can be used to formulate the optimal control implementation:

\[Z_i(\omega) = j\omega (m + A(\omega)) + B(\omega) + \frac{K_{hs}}{j\omega}\]

By characterizing the impedance of the WEC, a greater understanding of the dynamics can be reached. The figure below is a bode plot of the impedance of the RM3 float body. The natural frequency is defined by the point at which the phase of impedance is zero. By also plotting the frequency of the incoming wave, it is simple to see the difference between the natural frequency of the device and the wave frequency. Complex conjugate control (and some other control methods) seeks to adjust the natural frequency of the device to match the wave frequency. Matching the natural frequency to the wave frequency leads to resonance, which allows for theoretically optimal mechanical power.

It is important to note here that although impedance matching can lead to maximum mechanical power, it does not always lead to maximum electrical power. Resonance due to impedance matching often creates high peaks of torque and power, which are usually far from the most efficient operating points of PTO systems used to extract power and require those systems to be more robust and expensive. Thus, the added factor of PTO dynamics and efficiency may lead to complex conjugate control being suboptimal. Furthermore, any constraints or other nonlinear dynamics may make complex conjugate control unachievable or suboptimal. Theoretical optimal control using complex conjugates presented here should be taken as a way to understand WEC controls rather than a method to achieve optimal electrical power for a realistic system.

Passive Control (Proportional)

Passive control is the simplest of WEC controllers and acts as a damping force. Hence, the damping value (also referred to as a proportional gain) is multiplied by the WEC velocity to determine the power take-off force:

\[F_{PTO} = K_p \dot{X}\]

Although unable to reach optimal power for a regular wave due to its passive nature, a passive controller can still be tuned to reach its maximum power. According to complex conjugate control, a passive controller can be optimized for regular wave conditions using the following formula [C3]:

\[K_{p,opt} = \sqrt{B(\omega)^2 + (\frac{K_{hs}}{\omega} - \omega (m + A(\omega)))^2}\]

The optimal proportional gain has been calculated for the float using the optimalGainCalc.m file and implemented in WEC-Sim to achieve optimal power. The mcrBuildGains.m file sets up a sweep of the proportional gains which can be used to show that the results confirm the theoretical optimal gain in the figure below (negative power corresponding to power extracted from the system). This MCR run can be recreated by running the mcrBuildGains.m file then typing wecSimMCR in the command window.

This example only shows the optimal proportional gain in regular wave conditions. For irregular wave spectrums and nonlinear responses (such as with constraints), an optimization algorithm can be used to determine optimal control gains.

Reactive Control (Proportional-Integral)

Reactive control is also a very simple form of WEC control and combines the damping force of a passive controller with a spring stiffness force. The standard PTO block can also be used to implement PI control using the damping and stiffness values but doesn’t allow for negative inputs which is often necessary for optimal stiffness. This controller is also known as a proportional integral controller with the proportional gain corresponding to the damping value and the integral gain corresponding to a spring stiffness value:

\[F_{PTO} = K_p \dot{X} + K_i X\]

The addition of the reactive component means the controller can achieve optimal complex conjugate control by cancelling out the imaginary portion of the device impedance. Thus, the proportional and integral control gains can be defined by the following formulas [C4]:

\[K_{p,opt} = B(\omega)\]

\[K_{i,opt} = (m + A(\omega)) \omega^2 - K_hs\]

The optimal proportional and integral gains have been calculated using the optimalGainCalc.m file and implemented in WEC-Sim to achieve optimal power. The mcrBuildGains.m file again sets up a sweep of the gains which can be used to show that the results confirm the theoretical optimal gains in the figure below. This MCR run can be recreated by running the mcrBuildGains.m file then typing wecSimMCR in the command window.

This example only shows the optimal gains in regular wave conditions. For irregular wave spectrums and nonlinear responses (such as with constraints), an optimization algorithm can be used to determine optimal control gains.

Latching Control

Latching control combines a traditional passive controller with a latching mechanism which applies a large braking force during a portion of the oscillation. By locking the device for part of the oscillation, latching control attempts to adjust the phase of the motion to match the phase of incoming waves. Latching control can slow the device motion to match wave motion and is therefore most often used when the wave period is longer than the natural period. Latching control is still considered passive as no energy input is required (assuming velocity is zero while latched).

The braking/latching force is implemented as a very large damping force ($G$), which can be adjusted based on the device’s properties [C5]:

\[G = 80 (m + A(\omega))\]

Because latching achieves phase matching between the waves and device, the optimal damping can be assumed the same as for reactive control. Lastly, the main control variable, latching time, needs to be determined. For regular waves, it is desired for the device to move for a time equal to its natural frequency, meaning the optimal latching time is likely close to half the difference between the wave period and the natural period [C5] (accounting for 2 latching periods per wave period).

\[t_{latch} = \frac{1}{2} (T_{wave} - T_{nat})\]

The optimal latching time has been calculated using the optimalGainCalc.m file and implemented in WEC-Sim. The mcrBuildTimes.m file sets up a sweep of the latching times, the results for which are shown in the figure below. This MCR run can be recreated by running the mcrBuildGains.m file then typing wecSimMCR in the command window. Based on the results, the optimal latching time is slightly lower than expected which may be due to imperfect latching or complex dynamics which aren’t taken into account in the theoretical optimal calculation. Regardless, latching results in much larger power when compared to traditional passive control.

Further, the figure below shows the excitation force and velocity, which are close to in phase when a latching time of 2.4 seconds is implemented.

Although not shown with this example, latching can also be implemented in irregular waves but often requires different methods including excitation prediction.

Declutching Control

Declutching control is essentially the opposite of latching. Instead of locking the device, it is allowed to move freely (no PTO force) for a portion of the oscillation. Often, declutching is used when the wave period is smaller than the natural period, allowing the device motion to “catch up” to the wave motion. Declutching is also considered a passive control method.

The optimal declutching time and damping values are slightly harder to estimate than for latching. The device’s motion still depends on its impedance during the declutching period, meaning the device does not really move “freely” during this time. Hence, in opposition to optimal latching the declutching time was assumed to be near half the difference between the natural period and the wave period, but is further examined through tests.

\[t_{declutch} = \frac{1}{2} (T_{wave} - T_{nat})\]

This optimal declutching time has been calculated using the optimalGainCalc.m file and implemented in WEC-Sim. Because energy is not harvested during the declutching period, it is likely that a larger damping is required. Thus, the optimal passive damping value was used for the following simulations, although a more optimal damping value likely exists for delclutching.

Since declutching is most desired when the wave period is smaller than the natural period, a wave period of 3.5 seconds was tested with a height of 1 m. For comparison to traditional passive control, the optimal passive damping value was tested for these conditions, leading to a power of 5.75 kW. The mcrBuildTimes.m file sets up a sweep of the declutching times, the results for which are shown in the figure below. It is clear that delcuthing control can offer an improvement over traditional passive control.

Further, the figure below shows the excitation force and velocity with a declutch time of 0.8 seconds. The excitation and response are not quite in phase, but the device can be seen “catching up” to the wave motion during the declutching time.

Although not shown with this example, declutching can also be implemented in irregular waves but often requires different methods including excitation prediction.

Model Predictive Control (MPC)

Model predictive control is a WEC control method which uses a plant model to predict and optimize the dynamics. MPC is a complex controller that can be applied in both regular and irregular waves while also taking into account time-domain constraints such as position, velocity, and PTO force. For the model predictive controller implemented here, the plant model is a frequency dependent state-space model [C6]. The state space model is then converted to a quadratic programming problem to be solved by quadprog(), MATLAB’s quadratic programming function. Solving this system leads to a set of PTO forces to optimize the future dynamics for maximum harvested power, the first of which is applied at the current timestep. The relevant files for the MPC example in the Controls folder of WEC-Sim Applications are detailed in the table below (excluding wecSimInputFile.m and userDefinedFunctions.m which are not unique to MPC). Note: This controller is similar to the NMPC example within the WECCCOMP Application, but this example includes a method for calculating frequency dependence and setting up the state space matrices based on boundary element method data, allows for position, velocity, and force constraints, and is applied to a single body heaving system.

File

Description

coeff.mat

Coefficients for frequency dependence

fexcPrediction.m

Predicts future excitation forces

sphereMPC.slx

Simulink model including model predictive controller

mpcFcn.m

Creates and solves quadratic programming problem

plotFreqDep.m

Solves for and plots frequency dependence coeffs

The Simulink diagram is shown in the figure below. The figure shows an overview of the controller, which primarily consists of the plant model and the optimizer. The plant model uses the excitation force, applied PTO force, and current states to calculate the states at the next timestep. Then, the optimizer predicts the future excitation, which is input into the mpcFcn.m file along with the states to solve for the optimal change in PTO force (integrated to solve for instantaneous PTO force).

The results of the model predictive controller simulation in irregular waves are shown below with the dashed lines indicating the applied constraints. MPC successfully restricts the system to within the constraints (except for a few, isolated timesteps where the solver couldn’t converge) while also optimizing for maximum average mechanical power (300 kW). The constraints can be changed to account for specific WEC and PTO physical limitations, but will limit the average power. There are also other parameters which can be defined or changed by the user in the wecSimInputFile.m such as the MPC timestep, prediction horizon, r-scale, etc. to customize and tune the controller as desired.

The model predictive controller is particularly beneficial because of its ability to predict future waves and maximize power accordingly as well as the ability to handle constraints. A comparison to a reactive controller is shown in the table below. The reactive controller can be tuned to stay within constraint bounds only when future wave conditions are known and, in doing so, would sacrifice significant power. On the other hand, without knowledge of future wave, the results from the untuned reactive controller are shown below using optimal theoretical gains from the complex conjugate method at the peak wave period. With no ability to recognize constraints, the reactive controller leads to much larger amplitude and velocity and exhibits large peaks in PTO force and power, both of which would likely lead to very expensive components and inefficient operation. It is clear that the model predictive controller significantly outperforms the reactive controller in terms of mechanical power harvested, constraint inclusions, and peak conditions. Because of the increased complexity of model predictive control, limitations include longer computation time and complex setup.

Parameter

Constraint

MPC

Reactive

Max Heave Position (m)

4

4.02

8.06

Max Heave Velocity (m/s)

3

2.95

5.63

Max PTO Force (kN)

2,000

2,180

4,630

Max PTO Force Change (kN/s)

1,500

1,500

3,230

Peak Mechanical Power (kW)

N/A

4,870

13,700

Avg Mechanical Power (kW)

N/A

300

241

Reactive Control with Direct Drive Power Take-Off

The previous controllers only considered the mechanical power output. Although maximization of mechanical power allows for the maximum energy transfer from waves to body, it often does not lead to maximum electrical power. The previous controller examples demonstrate the controller types and energy transfer from waves to body, but the important consideration of electrical power requires a PTO model. This example applies a reactive controller to the sphere body with a simplified direct drive PTO model to maximize electrical power. Within the Simulink subsystem for determining the PTO force, the controller prescribes the ideal or desired force which is fed into the direct drive PTO. The current in the generator is then used to control the applied force.

The PTO parameters used for this example are defined in the wecSimInputFile.m and correspond to the Allied Motion Megaflux Frameless Brushless Torque Motors–MF0310 [C7]. The results in terms of capture width (ratio of absorbed power (W) to wave power (W/m)) and resultant power for the applied gains from Section Reactive Control (Proportional-Integral) are shown in the figures below for a regular wave with a period of 9.6664 s and a height of 2.5 m. The “Controller (Ideal)” power is the ideal power absorbed according to the applied controller gains. The “Mechanical (Drivetrain)” power is the actual mechanical power absorbed by the PTO system including the inertial, damping, and shaft torque power. Lastly, the “Electrical (Generator)” power is the electrical power absorbed by the generator including the product of induced current and voltage (based on shaft torque and velocity, respectively) and the resultant generator losses (product of current squared and winding resistance). Mechanical power maximization requires significant net input electrical power (signified by red bar) which leads to an extremely negative capture width. Thus, instead of harvesting electrical power, power would need to be taken from the grid or energy storage component to achieve mechanical power maximization.

On the other hand, by testing different controller gains in the same wave conditions (regular wave: period = 9.6664 s, height = 2.5 m), the gains which optimize for maximum electrical power can be found as shown below. Increasing the proportional gain and decreasing the integral gain magnitude leads to a maximum power of about 84 kW and capture width of about 1.5 m. The resultant motion is almost ten times smaller than for the mechanical power maximization which leads to a lower current and much lower generator power losses (product of current squared and winding resistance).

Cable Features

Cables or tethers between two bodies apply a force only in tension (when taut or stretched), but not in compression, can be modeled using the cableClass implementation. A cable block must be added to the model between the two PTOs or constraints that are to be connected by a cable. Users must initialize the cable class in the wecSimInputFile.m along with the base and follower connections in that order, by including the following lines:

cable(i) = cableClass('cableName','baseConnection','followerConnection');

where baseConnection is a PTO or constraint block that defines the cable connection on the base side, and followerConnection is a PTO or constraint block that defineds the connection on the follower side.

It is necessary to define, at a minimum:

cable(i).stiffness = <cableStiffness>;
cable(i).damping = <cableDamping>;

where cable(i).stiffness is the cable stiffness (N/m), and cable(i).damping is the cable damping (N/(m*s)). Force from the cable stiffness or damping is applied between the connection points if the current length of the cable exceeds the equilibrium length of the cable. By default, the cable equilibrium length is defined to be the distance between the locations of the baseConnection and followerConnection, so that initially there is no tension on the cable.

If a distinct initial condition is desired, one can define either cable(i).length or cable(i).preTension, where cable(i).length is the equilibrium (i.e., unstretched) length of the cable (m), and cable(i).preTension is the pre-tension applied to the cable at simulation start (N). The unspecified parameter is then calculated from the location of the baseConnection and followerConnection.

To include dynamics applied at the cable-to-body coupling (e.g., a stiffness and damping), a PTO block can be used instead, and the parameters pto(i).damping and pto(i).stiffness can be used to describe these dynamics.

By default, the cable is presumed neutrally buoyant and it is not subjected to fluid drag. To include fluid drag, the user can additionally define these parameters in a style similar to the bodyClass

cable(i).quadDrag.cd
cable(i).quadDrag.area
cable(i).quadDrag.drag
cable(i).linearDamping

The cable mass and fluid drag is modeled with a low-order lumped-capacitance method with 2 nodes. The mass and fluid drag forces are exerted at nodes defined by the 2 drag bodies. By default, one is co-located with the baseConnection and the other with the followerConnection. The position of these bodies can be manipulated by changing the locations of the base or follower connections points.

Note

This is not appropriate to resolve the actual kinematics of cable motions, but it is sufficient to model the aggregate forces among the connected bodies.

Mooring Features

This section provides an overview of WEC-Sim’s mooring class features; for more information about the mooring class code structure, refer to Mooring Class.

Floating WEC systems are often connected to mooring lines to keep the device in position. WEC-Sim allows the user to model the mooring dynamics in the simulation by specifying the mooring matrix, a mooring lookup table, or coupling with MoorDyn. To include mooring connections, the user can use the mooring block (i.e., Mooring Matrix block, Mooring Lookup Table block, or MoorDyn Connection block) given in the WEC-Sim library under Moorings lib and connect it between the body and the Global reference frame. The Moordyn Connection block can also be placed between two dynamic bodies or frames. Refer to the RM3 with MoorDyn, and the Series 8 - Using MoorDyn with WEC-Sim for more information.

MoorDyn is hosted on a separate MoorDyn repository. It must be download separately, and all files and folders should be placed in the $WECSIM/functions/moorDyn directory.

Mooring Matrix

When the mooring matrix block is used, the user first needs to initiate the mooring class by setting mooring(i) = mooringClass('mooring name') in the WEC-Sim input file (wecSimInputFile.m). Typically, the mooring connection location also needs to be specified, mooring(i).location = [1x3] (the default connection location is [0 0 0]). The user can also define the mooring matrix properties in the WEC-Sim input file using:

Mooring stiffness matrix - mooring(i).matrix.stiffness = [6x6] in [N/m]
Mooring damping matrix - mooring(i).matrix.damping = [6x6] in [Ns/m]
Mooring pretension - mooring(i).matrix.preTension = [1x6] in [N]

Note

“i” indicates the mooring number. More than one mooring can be specified in the WEC-Sim model when the mooring matrix block is used.

Mooring Lookup Table

When the mooring lookup table block is used, the user first needs to initiate the mooring class by setting mooring(i) = mooringClass('mooring name') in the WEC-Sim input file (wecSimInputFile.m). Typically, the mooring connection location also needs to be specified, mooring(i).location = [1x3] (the default connection location is [0 0 0]). The user must also define the lookup table file in the WEC-Sim input file with mooring(i).lookupTableFile = 'FILENAME';

The lookup table dataset should contain one structure that contains fields for each index and each force table:

Index Name

Description

Dimensions

X

Surge position [m]

1 x nX

Y

Sway position [m]

1 x nY

Z

Heave position [m]

1 x nZ

RX

Roll position [deg]

1 x nRX

RY

Pitch position [deg]

1 x nRY

RZ

Yaw position [deg]

1 x nRZ

Force Name

Description

Dimensions

FX

Surge force [N]

nX x nY x nZ x nRX x nRY x nRZ

FY

Sway force [N]

nX x nY x nZ x nRX x nRY x nRZ

FZ

Heave force [N]

nX x nY x nZ x nRX x nRY x nRZ

MX

Roll force [Nm]

nX x nY x nZ x nRX x nRY x nRZ

MY

Pitch force [Nm]

nX x nY x nZ x nRX x nRY x nRZ

MZ

Yaw force [Nm]

nX x nY x nZ x nRX x nRY x nRZ

MoorDyn

When a MoorDyn block is used, the user first needs to initiate the mooring class by setting mooring = mooringClass('mooring name') in the WEC-Sim input file (wecSimInputFile.m), followed by setting mooring(i).moorDyn = 1 to initialize a MoorDyn connection. Each MoorDyn connection can consist of multiple lines and each line may have multiple nodes. The number of MoorDyn lines and nodes in each line should be defined as (mooring(i).moorDynLines = <Number of mooring lines>) and (mooring(i).moorDynNodes(iLine) = <Number of mooring nodes in line> - only used for ParaView visualization), respectively and should match the number of lines and nodes specified in the MoorDyn input file.

A mooring folder that includes a MoorDyn input file (lines.txt) is required in the simulation folder. The body and corresponding mooring attachment points are defined in the MoorDyn input file. The body location in the MoorDyn input file should match that of the initial location of the body’s center of gravity (usually derived from BEM results). MoorDyn handles the kinematic transform to convert the mooring forces from the attachment points to the 6 degree of freedom force acting on the current location of the body’s center of gravity. The initial displacement of the mooring line in WEC-Sim (mooring(i).initial.displacement) should match the location of the connected body in the MoorDyn input file or the difference in location between two connected bodies. In the MoorDyn input file, the location of points/nodes are specified relative to the body location if of attachment type ‘body#’ and relative to the global frame for any other attachement type.

Note

WEC-Sim/MoorDyn coupling now allows more than one mooring connnection (i.e., multiple MoorDyn Connection blocks) in the simulation, but there can only be one call to MoorDyn (i.e., one MoorDyn Caller block).

RM3 with MoorDyn

This section describes how to simulate a mooring connected WEC system in WEC-Sim using MoorDyn. The RM3 two-body floating point absorber is connected to a three-point catenary mooring system with an angle of 120 between the lines in this example case. The RM3 with MoorDyn folder is located under the WEC-Sim Applications repository.

WEC-Sim Simulink Model: Start out by following the instructions on how to model the Two-Body Point Absorber (RM3). To couple WEC-Sim with MoorDyn, the MoorDyn Connection block is added in parallel to the constraint block and the MoorDyn Caller block is added to the model (no connecting lines).

WEC-Sim Input File: In the wecSimInputFile.m file, the user needs to initiate the mooring class and MoorDyn and define the number of mooring lines.

%% Simulation Data
simu = simulationClass();
simu.simMechanicsFile = 'RM3MoorDyn.slx';       % WEC-Sim Model File
simu.mode = 'accelerator';
simu.explorer = 'off';
simu.rampTime = 40;
simu.endTime = 400;
simu.dt = 0.01;
simu.cicDt = 0.05;

%% Wave Information
% User-Defined Time-Series
waves = waveClass('elevationImport');           % Create the Wave Variable and Specify Type
waves.elevationFile = 'etaData.mat';            % Name of User-Defined Time-Series File [:,2] = [time, eta]
waves.waterDepth = 70;

%% Body Data
% Float
body(1) = bodyClass('../../_Common_Input_Files/RM3/hydroData/rm3.h5');
body(1).geometryFile = '../../_Common_Input_Files/RM3/geometry/float.stl';
body(1).mass = 'equilibrium';
body(1).inertia = [20907301 21306090.66 37085481.11];

% Spar/Plate
body(2) = bodyClass('../../_Common_Input_Files/RM3/hydroData/rm3.h5');
body(2).geometryFile = '../../_Common_Input_Files/RM3/geometry/plate.stl';
body(2).mass = 'equilibrium';
body(2).inertia = [94419614.57 94407091.24 28542224.82];
body(2).initial.displacement = [0 0 -0.21];     % Initial Displacement

%% PTO and Constraint Parameters
% Floating (3DOF) Joint
constraint(1) = constraintClass('Constraint1');
constraint(1).location = [0 0 0];

% Translational PTO
pto(1) = ptoClass('PTO1');
pto(1).stiffness=0;
pto(1).damping=1200000;
pto(1).location = [0 0 0];

%% Mooring
% Moordyn
mooring(1) = mooringClass('mooring');           % Initialize mooringClass
mooring(1).moorDyn = 1;                         % Initialize MoorDyn
mooring(1).moorDynLines = 6;                    % Specify number of lines
mooring(1).moorDynNodes(1:3) = 16;              % Specify number of nodes per line
mooring(1).moorDynNodes(4:6) = 6;               % Specify number of nodes per line
mooring(1).initial.displacement = [0 0 -21.29-.21]; % Initial Displacement (body cg + body initial displacement)

MoorDyn Input File: A mooring folder that includes a moorDyn input file (lines.txt) is created. The moorDyn input file (lines.txt) is shown in the figure below. More details on how to set up the MooDyn input file are described in the MoorDyn Documentation. One specific requirement when using WEC-Sim with MoorDyn is that the Body(s) in which the mooring lines are attached to should be labeled as “Coupled” in the MoorDyn input file, which allows for WEC-Sim to control the body dynamics. Note: WEC-Sim now uses MoorDyn v2.

Simulation and Post-processing: Simulation and post-processing are the same process as described in Tutorial Section.

Note

You may need to install the MinGW-w64 compiler to run this simulation.

WEC-Sim Post-Processing

WEC-Sim contains several built in methods inside the response class and wave class to assist users in processing WEC-Sim output: output.plotForces, output.plotResponse, output.saveViz, waves.plotElevation, and waves.plotSpectrum. This section will demonstrate the use of these methods. They are fully documented in the WEC-Sim API.

Plot Forces

The responseClass.plotForces() method can be used to plot the time series of each force component for a body. The first argument takes in a body number, the second a degree of freedom of the force. For example, output.plotForces(2,3) will plot the vertical forces that act on the 2nd body. The total force is split into its components:

total force
excitation force
radiation damping force
added mass force
restoring force (combination of buoyancy, gravity and hydrostatic stiffness),
Morison element and viscous drag force
linear damping force

../_images/OSWEC_heaveForces.PNG — Demonstration of output.plotForces() method for the OSWEC example.

Plot Response

The responseClass.plotResponse() method is very similar to plotForces except that it will plot the time series of a body’s motion in a given degree of freedom. For example, output.plotResponse(1,5) will plot the pitch motion of the 1st body. The position, velocity and acceleration of that body is shown.

../_images/OSWEC_pitchResponse.PNG — Demonstration of output.plotResponse() method for the OSWEC example.

Plot Elevation

The waveClass.plotElevation() method can be used to plot the wave elevation time series at the domain origin. The ramp time is also marked. The only required input is simu.rampTime. Users must manually plot or overlay the wave elevation at a wave gauge location.

../_images/OSWEC_plotEta.PNG — Demonstration of waves.plotElevation() method for the OSWEC example.

Plot Spectrum

The waveClass.plotSpectrum() method can be used to plot the frequency spectrum of an irregular or spectrum import wave. No input parameters are required.

WEC-Sim Visualization

WEC-Sim provides visualization in SimScape Mechanics Explorer by default. This section describes some additional options for WEC-Sim visualization

Wave Markers

This section describes how to visualize the wave elevations at various locations using markers in SimScape Mechanics Explorer. Users must define an array of [X,Y] coordinates, the marker style (sphere, cube, frames), the marker size in pixels, marker color in RGB format. The Global Reference Frame block programmatically initiates and adds/deletes the visualization blocks based on the number of markers (0 to N) defined by the user. Here are the steps to define wave markers representing a wave-spectra, waves(1). Similar steps can be followed for subsequent waves(#) objects.

Define an array of marker locations: waves(1).marker.location = [X,Y], where the first column defines the X coordinates, and the second column defines the corresponding Y coordinates, Default = []
Define marker style : waves(1).marker.style = 1, where 1: Sphere, 2: Cube, 3: Frame, Default = 1: Sphere
Define marker size : waves(1).marker.size = 10, to specify marker size in Pixels, Default = 10
Define marker color: waves(1).marker.graphicColor = [1,0,0], to specifie marker color in RBG format.

For more information about using ParaView for visualization, refer to the Wave_Markers examples on the WEC-Sim Applications repository.

Note

This feature is not compatible with user-defined waves waves = waveClass('elevationImport')

../_images/RM3_vizMarker.jpg — Demonstration of visualization markers in SimScape Mechanics Explorer.

Save Visualization

The responseClass.saveViz() method can be used to create a complete animation of the simulation. The animation shows the 3D response of all bodies over time on top of a surface plot of the entire directional wave field. The default wave domain is defined by simu.domainSize, waves.waterDepth, and the maximum height that the STL mesh of any body reaches. Users may optionally input the axis limits to restrict or widen the field of view, the time steps per animation frame, and the output file format. Users can choose to save the animation as either a .gif or .avi file. This function can take significant time to run depending on simulation time and time step, however it may be faster and easier than Paraview. Users are still recommended to use the provided Paraview macros for more complex animations and analysis.

For example, in the OSWEC case the command output.saveViz(simu,body,waves,'timesPerFrame',5,'axisLimits',[-50 50 -50 50 -12 20]) results in the following figure:

../_images/OSWEC_plotWaves.PNG — Demonstration of output.saveViz() method for the OSWEC example.

Paraview Visualization

This section describes how to use ParaView for visualizing data from a WEC-Sim simulation. Using ParaView visualization improves on the SimMechanics explorer by:

Visualizing the wave field
Visualizing the cell-by-cell nonlinear hydrodynamic forces (when using nonlinear buoyancy and Froude-Krylov wave excitation)
Allowing data manipulation and additional visualization options

However, the SimMechanics explorer shows the following information not included in the ParaView visualization:

Location of center of gravity
Location of different frames (e.g. PTO and Constraint frames)

Visualization with ParaView requires additional output files to be written to a vtk directory. This makes the WEC-Sim simulation take more time and the case directory larger, so it should only be used when additional visualization is desired. Users will also need to have some familiarity with using ParaView. For more information about using ParaView for visualization, refer to the Series 4 - Body-to-Body Interactions, and the Paraview_Visualization examples on the WEC-Sim Applications repository.

Install ParaView and WEC-Sim Macros

First, install ParaView 5.11.1. Then, add the WEC-Sim specific macros:

Open ParaView
Click on Macros => Add new macro
Navigate to the WEC-Sim source/functions/paraview directory
Select the first file and click OK
Repeat this for all .py files in the source/functions/paraview directory

WEC-Sim Visualization in ParaView

When simu.paraview.option = 1, a vtk directory is created inside the WEC-Sim $CASE directory. All files necessary for ParaView visualization are located there. To view in ParaView:

Open the $CASE/vtk/<filename>.pvd file in ParaView
Select the WEC-Sim model in the pipeline, and run the WEC-Sim macro
Move the camera to desired view
Click the green arrow (play) button

The WEC-Sim macro:

Extracts each body, sets the color and opacity, and renames them
Extracts the waves, sets color and opacity, and renames
Creates the ground plane
Sets the camera to top view

After opening the .pvd file and running the WEC-Sim macro you can do a number of things to visualize the simulation in different ways. You can color waves and bodies by any of the available properties and apply any of the ParaView filters. The figures below show some of the visualization possibilities afforded by using ParaView with WEC-Sim.

../_images/rm3_iso_side.png — Reference Model 3

../_images/oswec_iso_side.png — Bottom-fixed Oscillating Surge WEC (OSWEC)

../_images/sphere_freedecay_iso_side.png — Sphere

../_images/ellipsoid_iso_side.png — Ellipsoid

../_images/gbm_iso_side.png — Barge with Four Flexible Body Modes

../_images/wigley_iso_side.png — Wigley Ship Hull

../_images/wecccomp_iso_side.png — Wave Energy Converter Control Competition (WECCCOMP) Wavestar Device

../_images/oc6_iso_side.png — OC6 Phase I DeepCwind Floating Semisubmersible

Two examples using Paraview for visualization of WEC-Sim data are provided in the Paraview_Visualization directory of the WEC-Sim Applications repository. The RM3_MoorDyn_Viz example uses ParaView for WEC-Sim data visualization of a WEC-Sim model coupled with MoorDyn to simulate a mooring system for the RM3 geometry. The OSWEC_NonLinear_Viz example uses ParaView for WEC-Sim data visualization of a WEC-Sim model with nonlinear Hydro to simulate nonlinear wave excitation on the flap of the OSWEC geometry.

MoorDyn Visualization in ParaView

The video below shows three different views of the RM3 model with MoorDyn. The left view uses the WEC-Sim macro. The top right view uses the slice filter. The bottom right view shows the free surface colored by wave elevation.

Nonlinear Hydro Visualization in ParaView

When using nonlinear buoyancy and Froude-Krylov wave excitation the paraview files also contain cell data for the bodies. The cell data are:

Cell areas
Hydrostatic pressures
Linear Froude-Krylov pressures
Nonlinear Froude-Krylov pressures

The pressureGlyphs macro calculates cell normals, and cell centers. It then creates the following glyphs:

Hydrostatic pressure
Linear Froude-Krylov pressure
Nonlinear Froude-Krylov pressure
Total pressure (hydrostatic plus nonlinear Froude-Krylov)
Froude-Krylov delta (nonlinear minus linear)

To view WEC-Sim nonlinear hydro data in ParaView:

Open the $CASE/vtk/<filename>.pvd file in ParaView
Select the WEC-Sim model in the pipeline, and run the WEC-Sim macro
Move the camera to desired view
Select the WEC-Sim model again in the pipeline, and run the pressureGlyphs macro
Select which features to visualize in the pipeline
Click the green arrow (play) button

The video below shows three different views of the OSWEC model with non-linear hydrodynamics. The top right shows glyphs of the nonlinear Froude-Krylov pressure acting on the float. The bottom right shows the device colored by hydrostatic pressure.

Loading a ParaView State File

If a previous *.pvsm ParaView state file was saved, the state can be applied to a *.pvd ParaView file. To load a state file:

Open the $CASE/vtk/<filename>.pvd file in ParaView
Click on File => Load State
Select the desired $CASE/<filename>.pvsm Paraview state file to apply
Select the “Search files under specified directory” option, specify the desired WECS-Sim $CASE/vtk/ directory, and click OK

Paraview state files are provided for both Paraview_Visualization examples provided onthe WEC-Sim Applications repository, one for the RM3 using MoorDyn, and another for the OSWEC with nonlinear hydro.

ParaView Visualization Parameters

The following table lists the WEC-Sim simulation parameters that can be specified in the wecSimInputFile to control the ParaView visualization. Note, the body.viz properties are also used for the SimMechanics explorer visualization.

WEC-Sim Visualization using ParaView
Variable		Description
`simu.paraview.option`		0 to not output ParaView files [default] 1 to output ParaView files
`simu.paraview.startTime`		time (s) to start ParaView visualization
`simu.paraview.endTime`		time (s) to end ParaView visualization
`simu.paraview.dt`		time step between adjacent ParaView frames [default 1]
`simu.paraview.path`		directory to create ParaView visualization files
`simu.nonlinearHydro`		0 for no nonlinear hydro [default] 1 for nonlinear hydro with mean free surface 2 for nonlinear hydro with instantaneous free surface
`simu.domainSize`		size of ground and water planes in meters [default 200]
`simu.dtOut`		simulation output sampling time step [default dt]
`body(i).viz.color`		[RGB] body color [default [1 1 0]]
`body(i).viz.opacity`		body opacity [default 1]
`body(i).paraview`		0 to exclude body from ParaView visualization 1 to include body in ParaView visualization [default]
`waves.viz.numPointsX`		wave plane discretization: number of X points [default 50]
`waves.viz.numPointsY` \| wave plane discretization: number of Y points [default 50]

Decay Tests

When performing simulations of decay tests, you must use one of the no-wave cases and setup the initial (time = 0) location of each body, constraint, PTO, and mooring block. The initial location of a body or mooring block is set by specifying the centerGravity or location at the stability position (as with any WEC-Sim simulation) and then specifying an initial displacement. To specify an initial displacement, the body and mooring blocks have a .initial property with which you can specify a translation and angular rotation about an arbitrary axis. For the constraint and PTO blocks, the .location property must be set to the location at time = 0.

There are methods available to help setup this initial displacement for all bodies, constraints, PTOs, and moorings. To do this, you would use the:

body(i).setInitDisp()
constraint(i).setInitDisp()
pto(i).setInitDisp()
mooring(i).setInitDisp()

methods in the WEC-Sim input file. A description of the required input can be found in the method’s header comments. The following properties must be defined prior to using the object’s setInitDisp() method:

body(i).centerGravity
constraint(i).location
pto(i).location
mooring.location

For more information, refer to the Free Decay example on the WEC-Sim Applications repository.

Other Features

The WEC-Sim Applications repository also includes examples of using WEC-Sim to model a Desalination plant and a numerical model of the WaveStar device for control implementation. The WaveStar device was used in the WECCCOMP wave energy control competition.

References

[C1]

Giorgio Bacelli and Ryan G Coe. Comments on control of wave energy converters. IEEE Transactions on Control Systems Technology, 29(1):478–481, 2020.

[C2]

Giorgio Bacelli, Victor Nevarez, Ryan G Coe, and David G Wilson. Feedback resonating control for a wave energy converter. IEEE Transactions on Industry Applications, 56(2):1862–1868, 2019.

[C3]

RPF Gomes, MFP Lopes, JCC Henriques, LMC Gato, and AFO Falcão. The dynamics and power extraction of bottom-hinged plate wave energy converters in regular and irregular waves. Ocean Engineering, 96:86–99, 2015.

[C4]

Ryan G Coe, Giorgio Bacelli, and Dominic Forbush. A practical approach to wave energy modeling and control. Renewable and Sustainable Energy Reviews, 142:110791, 2021.

[C5] (1,2)

Aurélien Babarit and Alain H Clément. Optimal latching control of a wave energy device in regular and irregular waves. Applied Ocean Research, 28(2):77–91, 2006.

[C6]

Ratanak So, Mike Starrett, Kelley Ruehl, and Ted KA Brekken. Development of control-sim: control strategies for power take-off integrated wave energy converter. In 2017 IEEE Power & Energy Society General Meeting, 1–5. IEEE, 2017.

[C7]

Megaflux™ frameless direct drive torque motors. 2006. URL: https://www.alliedmotion.com/brushless-motors/brushless-direct-drive-torque-motors/megaflux-frameless-direct-drive-torque-motors/.
